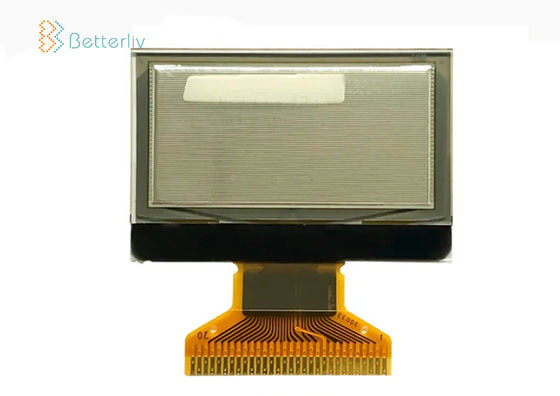

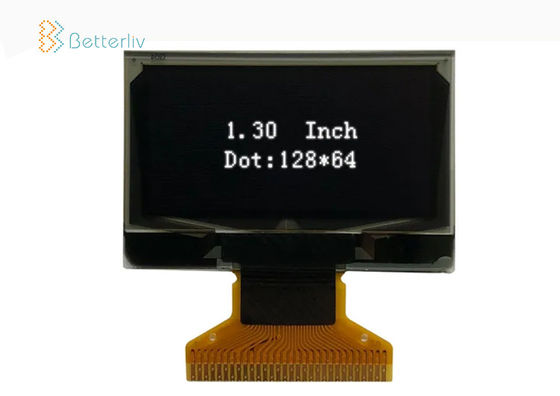

30 Pin Small OLED Display 128x64 Dot 1.3 Inch White Blue Color
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Size: | 1.3 Inch | Number Of Pixels: | 128x64 |
|---|---|---|---|
| Pins: | 30pin | Color: | White, Blue |
| Panel Size: | 34.5X23.0x1.45mm | Active Area: | 29.42x14.70mm |
| Interface: | Parallel、4-Wire SPI、I²C | Pixel Size: | 0.21x0.21mm |
| High Light: | 30 Pin Small OLED Display,1.3 Inch Small OLED Display,1.3 inch oled display |
||
Small OLED Display 128x64 Dot 1.3 Inch OLED 30 Pin Soldering Manufacturer Supplier
Product Description
128*64 LED display module for Arduino, supports many control chip.
Ultra-low power consumption: full screen lit 0.08W
Super high brightness and contrast are adjustable
Interface type is IIC, 4-wire SPI, Parallel
Pins: 30 pins or 25 pins
Voltage: 2.6V ~ 3.5V DC
Working Temperature: -40 ° ~ 85 °
Drive Duty: 1/64 Duty
High resolution: 128 * 64
| NO | ITEM | SPECIFICATION |
| 1 | Diagonal A / A size | 1.3 inch |
| 2 | Panel Size | 34.5 (W) x 23.0 (H) x 1.45 (D) mm |
| 3 | Active Area | 29.42 (W) x 14.7 (H) mm |
| 4 | Panel Thickness | 1.4 ± 0.1 |
| 5 | Dot Pitch | 0.23 (W) x 0.23 (H) |
| 6 | Dot Size | 0.21 (W) x 0.21 (H) |
| 7 | Dot Matrix | 128 (W) x 64 (H) dot |
Product Application
