2.4 inch 20 Pin Small OLED Display Module Type SSD1303 Drive IC
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Size: | 2.4 Inch | Number Of Pixels: | 128x64 |
|---|---|---|---|
| Pins: | 20 Pin | Color: | Yellow |
| Panel Size: | 75x52.7x14.94mm | Active Area: | 55.01x27.49mm |
| Interface: | Parallel, 4 Wire SPI, I²C | Pixel Size: | 0.4X0.4mm |
| Drive IC: | SSD1303 | Module Consruction: | Module Type |
| Highlight: | 20 Pin Small OLED Display,SSD1303 Small OLED Display,SSD1303 2.4 inch oled display |
||

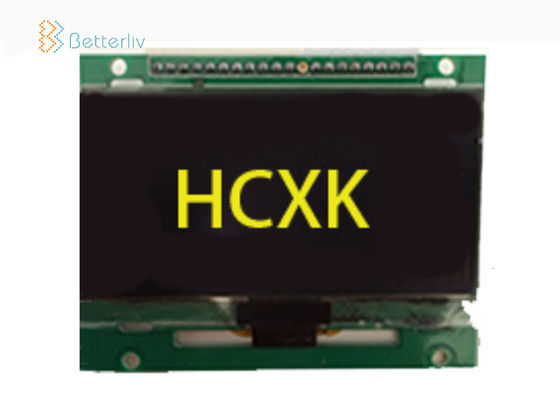

128x64 2.4 inch OLED Display Module Yellow Monochrome Custom Mini SPI I2C
Product Description
HCD2864YY20M01 is the 128x64 yellow pixels OLED display that simplifies your design, diagonal is only 2.4 inch. The controller ic SSD1303, communicates via parallel and I2C, 4-wire serial interface. Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast,extremely wide viewing angle and extremely operating temperature.
it can be used in any embedded systems,industrial device,security,medical and hand-held device.
This small, bright, yellow monochrome 2.42-inch 128x64 Graphic OLED display module is graphic display module. Small OLED displays provide a high contrast and super wide viewing angles.
128x64 brilliant yellow pixels.
| Diagonal Screen Size | 2.4 inch |
| Resolutions | 128x64 |
| Pins | 20Pin |
| Active area | 55.01x27.49mm |
| Pixel pitch | 0.43x0.43mm |
| Pixel size | 0.4x0.4mm |
| Driver IC | SSD1303 |
| Voltage | 2.8-5V |
| Interface | Parallel, 4-wire SPI, I²C |
| Operating temperature | -40~70℃ |
| Storge Temperature | -40~85℃ |
| Assemble | Soldering |
Application
OLED screen has a wide range of applications, it is mainly used in color display, mobile phones, BP machine, video phone, digital camera, light, green light, industrial lighting, signals, transport, finance, business, road signs, indoor and outdoor display of various information , electronic diary, electronic newspapers, office automation (OA) equipment, PDA, watch backlight, home appliances, digital cameras, high-end audio systems, portable information devices such as consumer products, car displays, airborne displays, ship-based displays.
Welcome to wholesale the customized high quality monochrome OLED display module made in China from our factory. We are known as one of the leading China manufacturers and suppliers in OLED industry and we are equipped with a professional factory.
Welcome to contact us.
