Square Small OLED Display 0.96 Inch 64x128 Soldering Type White I2c IIC Serial
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Size: | 0.96'' | Pins: | 22pin |
|---|---|---|---|
| Color: | White | Number Of Pixels: | 64x128 |
| Driving Method: | Passive Matrix | Panel Size: | 18x31x1.2mm |
| Active Area: | 10.86x21.74mm | Duty: | 1/128 |
| Interface: | Parallel、4-Wire SPI、I²C | Pixel Size: | 0.15x0.15mm |
| High Light: | 64x128 Square Small OLED Display,64x128 0.96 Inch Small OLED Display,White I2c IIC Square Small OLED Display |
||
0.96'' Square Small OLED Display 64x128 Soldering Type White I2c IIC Serial
Product Description

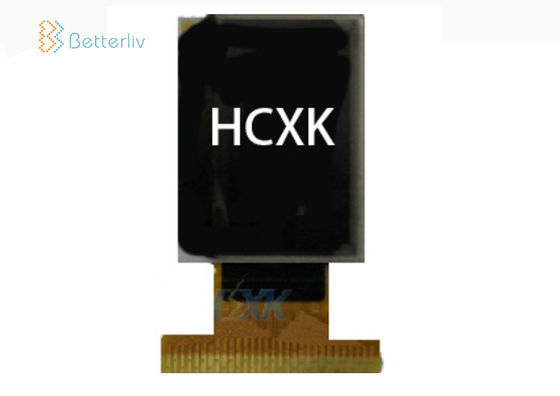

It is the square OLED display panel made of 64x128 individual white OLED pixels.The controller ic SSD1327 communicates via 4-wire SPI serial interface. It has high contrast, extremely wide viewing angle and extremely operating temperature.The FPC is the soldering type,no need connector.Just solder the FPC on your PCB directly.
|
Diagonal Screen Size
|
0.96 Inch
|
|
Color
|
Monochrome (white)
|
|
Number of Pixels
|
64x128
|
|
Module Construction
|
COG
|
|
Pins
|
30
|
|
Drive IC
|
SSD1315
|
|
Interface
|
I2C, 4-Wire SPI, Parallel
|
|
Pixel pitch
|
0.17x0.17mm
|
|
Assembly
|
Soldering
|
Pin Assignment(0.96"oled, 22Pin):
