96x32 Pixel Small OLED Panel , 0.86'' Micro OLED Display Blue And White Color
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Production Size: | 0.86 Inch | Color: | White/Blue |
|---|---|---|---|
| Number Of Pixels: | 96x32 | Driving Method: | Passive Matrix |
| Panel Size: | 29.1x9.2x1.2mm | Active Area: | 21.1x6.06mm |
| Duty: | 1/32 | Pins: | 14pin |
| Interface: | I2C | Brightness: | 120cd/m2 |
| High Light: | 0.86'' Micro OLED Display,96x32 Small OLED Panel,96x32 Micro OLED Display |
||
0.86'' Inch Small OLED Display Mini 96x32 Pixel Smart OLED Display Blue And White Color
Product Description

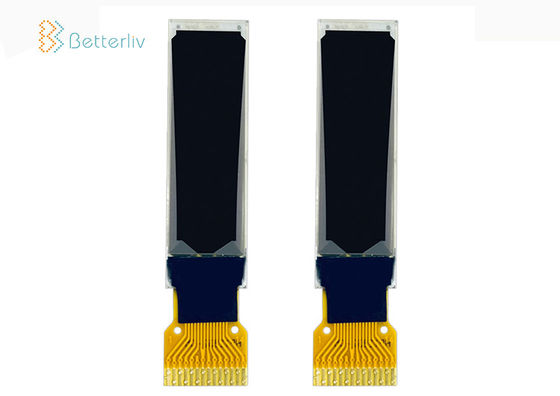

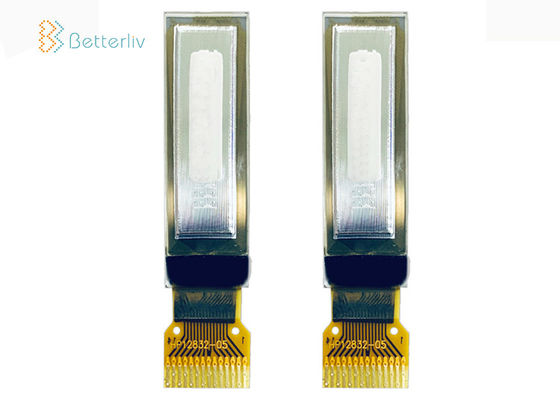

HCQ9632WWS01 is the graphic OLED display module made of 96x32 individual blue OLED pixels,diagonal is only 0.86 inch.The controller ic SSD1316, communicates via I2C serial interface only,thanks to controller's built-in voltage generation,only 2.6V-3.5V power supply is needed. Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast,extremely wide viewing angle and extremely operating temperature.The fpc is the soldering type,no need connector.Just solder the FPC on your PCB directly.
HCQ9632WWS01 Mini OLED display performance is better than the traditional LCD display, and also has lower consumption. It can be operated at temperatures from -40℃ to +85℃; its storage temperatures range from -40℃ to +85℃. Below is the basic specification of WEO006448A as reference. For any further information such as samples or quotation, please be free to contact us.
Features
Display Color: White,Blue
High Contrast Ratio(10000:1)
Free Viewing Angle
Fast Response Time (≦ 10μs)
Thinner & Lighter & Durable
Wide Operation Temperature (-40~85℃)
No need of backlight, self emitting
Apply to most products from any area.
PM-OLED features:Simple structure, light, thin, low driving voltage, wide viewing angle, high brightness and so on.
| Outline Dimension | 29.1*9.2*1.2mm |
| Active Area | 21.1*6.06 |
| Display Format | 96x32 Dots |
| Interface | I2C |
| Display Type | OLED |
| Brightness | 120cd/m2 |
| Operating Temperature | -40℃~85℃ |
| Storage Temperature | -40℃~85℃ |
| Power Supply | 2.6V-3.5V |
| IC or Equivalent | SSD1316 |
Pin Assignments
