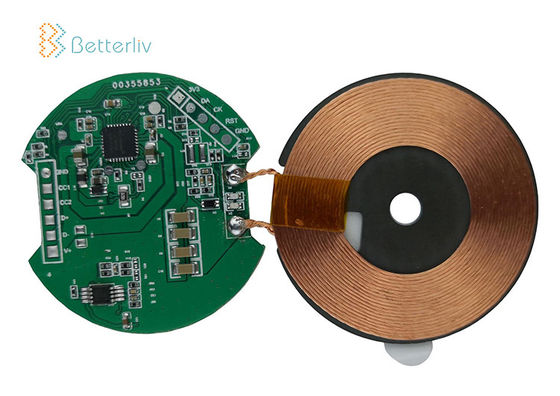

Quick 3.0 Qi Wireless Charger Pcba Circuit Board Gold Plating For Cell Phones

Quick 3.0 Qi Wireless Charger Pcba Circuit Board Gold Plating For Cell Phones

Quick 3.0 Qi Wireless Charger Pcba Circuit Board Gold Plating For Cell Phones
Quick 3.0 Qi Wireless Charger Pcba Circuit Board Gold Plating For Cell Phones

Large Image :  Quick 3.0 Qi Wireless Charger Pcba Circuit Board Gold Plating For Cell Phones Get Best Price

Product Details:
Place of Origin: Shenzhen,China
Brand Name: OEM/ODM
Certification: CE FCC ROHS
Model Number: OEM
Payment & Shipping Terms:
Payment Terms: L/C,, T/T, Western Union,
Detailed Product Description
Product Name: Smart Mobile Phone Wireless Charger PCB Assembly Application: Electronics,military,medicine, And So On
Solder Mask: Green Black Bule White Layer: 1-22 Layers
Testing Service:: Fly-probe,100% AOI Testing, 100% ET Testing,100% FQC Copper Thickness: 0.5-4 Oz, Regular 1oz
Min Drill Hole Diameter: 0.01",0.25mm Or 10mils Surface Finishing: Gold Plating
High Light:

3.0 Gold Plating Qi Wireless Charger Pcba

,

3.0 Gold Plating Wireless Charger Pcba

,

Gold Plating Wireless Charger Pcba Circuit Board

OEM PCBA Wireless Charger Customized Quick Charger 3.0 Prototype PCB Circuit Board

Product Description
Input Porotcol
Compatible for QC2.0/QC3.0/AFC
Input Power
5V/3A, 9V/3A
Output Power
Max 10W
Coil
A11/A11a One Coil
Charging Device
Cell Phones
Working Frequency
110K~205KHZ
Efficiency
76%
Certification
qi 1.2.4 BPP
PCBA Size
can be customized
Application
Wireless Charger Pad / Wireless Car Charger / LED Table Lamp / BT Speaker / Headset Stand / Mouse Pad
Customized
Accept
Usage
Phone Charging
Our Advantages
Professional Surface-mounting and Through-hole soldering Technology
Various sizes like 1206,0805,0603 components SMT technology
ICT(In Circuit Test),FCT(Functional Circuit Test) technology.
PCB Assembly With UL,CE,FCC,Rohs Approval
Nitrogen gas reflow soldering technology for SMT.
High Standard SMT&Solder Assembly Line
High density interconnected board placement technology capacity.



Our Advantages

1) We do PCB from double side up to 30-layer Multilayer PCB, HDI jobs.
2) Material: We have FR4 TG135/TG158/TG180 normal material in stock, also have FR1/ FR2/ FR3/ CEM1/ CEM3/ ROGERS/ ARLON/ ISOLA.
3) Rigid / flex/ flex-rigid PCBs with UL approved.
4) Flexible,quickly feedback for customers always.
5) Quickly offer will be less then 4 hours, Some top urgent inquiry we can offer within 1hour.
