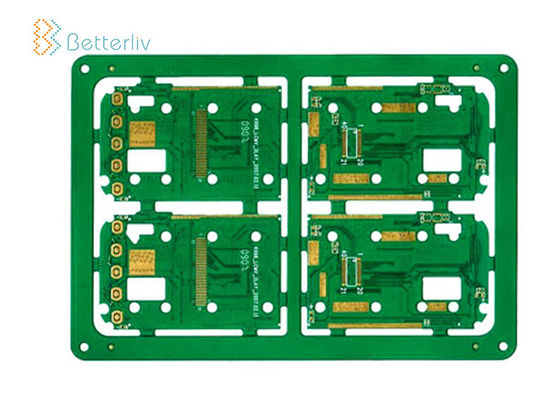

0.1mm 0.15mm 4 Layer PCB Board 0.5oz-6oz Copper Thickness OEM ODM service
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | 4 Layer PCB | Base Material: | FR-4/aluminum/ceramic/cem-3/FR-1 |
|---|---|---|---|
| Board Thickness: | 0.1mm(Flash Gold)/0.15mm(HASL) | Copper Thickness: | 0.5oz-6oz |
| Min. Hole Size: | 0.15-0.2mm | Board Size: | Custom |
| Highlight: | 0.15mm 4 Layer PCB Board,OEM 0.1mm 4 Layer PCB Board,ODM 0.1mm 4 Layer PCB Board |
||
PCB Board Design 4 Layer PCB Board Prototype Printed Circuit Board Multilayer PCB Manufacturing
PCB Assembly Capability
| Item | Mass Production | Pilot Run Production |
| Capacity | Capacity | |
| Material | CEM1,CEM3,FR-4, High TG FR4 , Halogen-free FR4 , aluminium ,Ceramic(96% Alumina) | |
| Teflon,PTFE(F4B,F4BK), Rogers(4003,4350,5880)Taconic(TLX-8,TLX-9), Arlon(35N,85N)etc. | ||
| Material Mixed Laminate | 4 layers -- 10 layers | 12 layers |
| FR4+Ro4350 , FR4+Aluminium , FR4+ Polyimide | ||
| Board Outline Tolerance | ±0.15mm | ±0.10mm |
| Board Thickness | 0.125mm--6.00mm | 0.1mm--8.00mm |
| Thickness Tolerance ( t≥0.8mm) | ± 8% | ±5% |
| Thickness Tolerance( t<0.8mm) | ±10% | ±8% |
| Minimum Line / Space | 0.10mm | 0.075mm |
| Trace width Tolerance | 15%-20% | 10% |
| Minimum Drilling Hole (Mechanical) | 0.2mm | 0.15mm |
| Minimum laser hole | 0.1mm | 0.075mm |
| Mini hole ring (single | 0.075MM | 0.05MM |
| Mini Solder Mask Bridge | 0.05mm | 0.025mm |
| Surface Finishing | HASL, Lead free HASL, Immersion gold, Immersion tin, Immersion Silver. | |
| Plated gold , OSP, Carbon ink, | ||
Our Advantages
1. Quick lead time of prototype & Punctual delivery.
2. Think highly of quality -- High pass rate
Pass rate of prototype: 100%
Pass rate of mass production: over 99.95%
3. Provide free consultation service of PCB and PCBA design.
4. We accept small order as well as bulk order.
5. Certification: Rosh, Reach, ISO 9001, 14001, UL, etc.
6. Provide OEM and ODM service.
Here is why our customers choose us for their PCB Fabrication & Assembly needs:
Long known as industry pioneers,we continue that reputation by offering full in-house PCB manufacturing and quickturn/small quantity assembly capabilities.We invite you to discover our PCB quality,reliability,and exceptional customer service.We only service for foreign customers.
