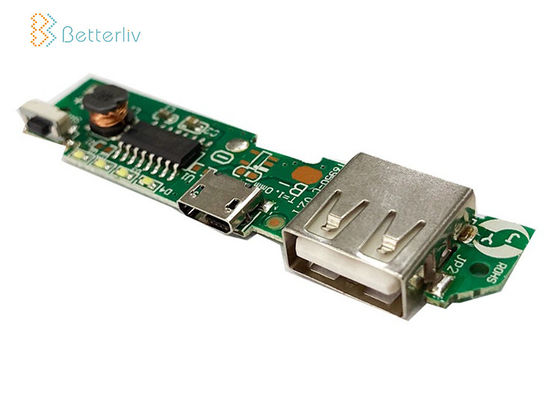

Mobile Phone Charger Power PCBA , Power Bank Circuit Board USB Type C

Mobile Phone Charger Power PCBA , Power Bank Circuit Board USB Type C

Mobile Phone Charger Power PCBA , Power Bank Circuit Board USB Type C
Mobile Phone Charger Power PCBA , Power Bank Circuit Board USB Type C

Large Image :  Mobile Phone Charger Power PCBA , Power Bank Circuit Board USB Type C Get Best Price

Product Details:
Place of Origin: Shenzhen,China
Brand Name: Betterliv/OEM
Certification: CE FCC ROHS
Model Number: OEM
Payment & Shipping Terms:
Payment Terms: T/T, Western Union, Credit Card
Detailed Product Description
Board Thickness: 0.2mm-4.5mm Min. Line Width: 0.08mm
Copper Thickness: 1/2 Oz-4 Oz Finish Hole Size:: PTH ±0.003'' ,NPTH ±0.002"
Base Material:: FR4 CEM1 CEM3 Ceramic Aluminum Board Thicknes: 0.2-4.0mm
SMT/DIP Service:: 0.3mm IC,BGA,QFP,0201 Components Surface Finishing: HASL-LF/OSP/ENIG Etc
High Light:

Mobile Phone Charger Power PCBA

,

Type C Power Bank Circuit Board

,

Type-C Power Bank Circuit Board

Custom Power Bank PCBA Module Circuit Board USB Type-C Circuit Board Assembly for Mobile Phone Charger



PCB&PCBA Capacity

Material
FR4, (High Tg FR4, General Tg FR4, Middle Tg FR4), Lead-Free Solder Sheet, Halogen Free FR4, Ceramic Filling Material, Teflon, PI
Material, BT Material, PPO, PPE etc.
Board thickness
Mass production: 394mil(10mm) Samples: 17.5mm
Surface finish
HASL, Immersion Gold, Immersion Tin, OSP, ENIG + OSP, Immersion Silver, ENEPIG, Gold Finger
PCB Max panel size
1150mm × 560mm
Layer
Mass production: 2~58 layers / Pilot run: 64 layers, Flexible PCB: 1-12 Layers
Min hole size
Mechanical drill: 8mil(0.2mm) Laser drill: 3mil(0.075mm)
PCBA QC
X-ray, AOI Test, Functional Test
Special Process
Buried Hole, Blind Hole, Embedded Resistance, Embedded Capacity, Hybrid, Partial hybrid, Partial high density, Back drilling, and
Resistance control.
Our service
PCB, Turnkey PCBA, PCB Clone, Housing, PCB Assembly, Component sourcing, PCB manufacturing from 1 to 64 layers
Sanforized
Buried via, Blind via, Mixed Pressure, Embedded Resistance, Embedded Capacitance, Local Mixed Pressure, Local High Density, Back
drill, impedance control.
SMT Capacity
700Million Points/Day
DIP Capacity
0.5Million Points/Day
Certificate
RoHS/ISO9001/TS16949/UL/ISO14001/ISO13485





PCB/PCBA services

We can support your research and development efforts and meet your fast life cycles.We have set a separated department where the exclusive production planner will follow your orders production to meet the requirements of Rapid Prototyping and Quick Turn PCB.
We has been establishes quality system with ISO9001 and strictly implements the IPC class III standard to inspect the quality.100% inspectionincludes electric test and AOI inspection. It can carry out high voltage test, impedance test,microsection ,weldability test and otherprofessional tests to keep up with more demands from users of high-tech products.* CAM and BOM engineering * PCB and PCBA manufacture
* Materials management
* SMT and DIP assembly
* PCB and PCBA quick turn prototype
* Program and testing
* Cable assembly
* Function testing
* Final case assembly
* Package
* Logistics



Why Choose Us

Mobile Phone Charger Power PCBA , Power Bank Circuit Board USB Type C 0
