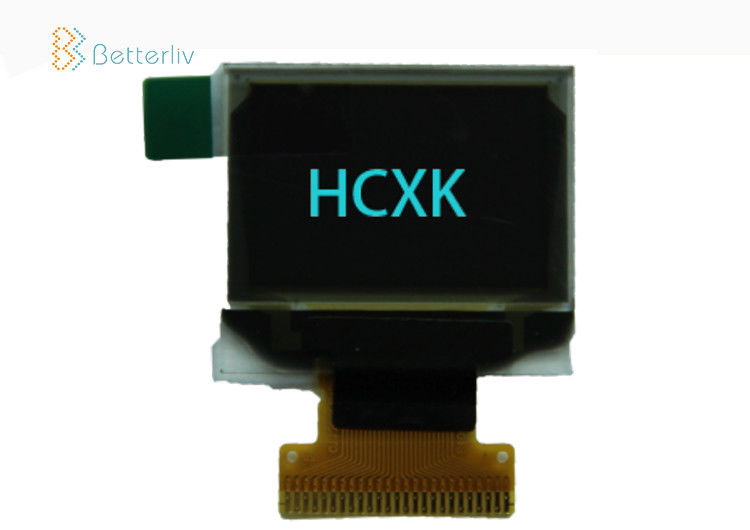

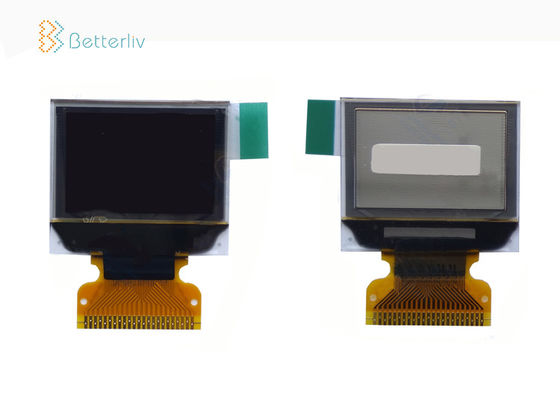

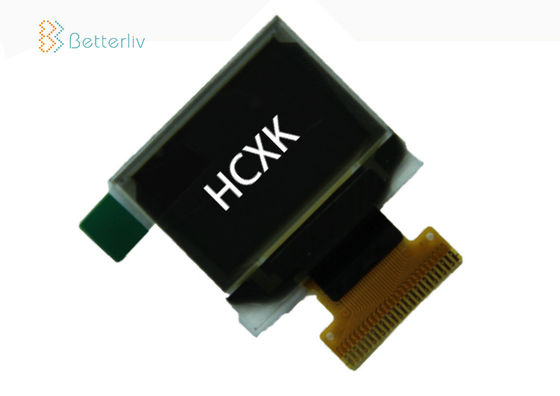

SSD1305 Small OLED Display 0.95 Inch High Brightness And Self Emission
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Production Size: | 0.95 Inch | Color: | White/Blue |
|---|---|---|---|
| Number Of Pixels: | 96X64 | Driving Method: | Passive Matrix |
| Panel Size: | 24.9X22.95X1.4mm | Active Area: | 19.953X13.424mm |
| Duty: | 1/64 | Pins: | 25 Pins |
| Interface: | Parallel, 4-wire SPI, I²C | Power Supply Voltage: | 2.6V-3.5V |
| High Light: | SSD1305 Small OLED Display,0.95 Small OLED Display,0.95 inch oled display |
||
0.95 Inch Small OLED Display Module with 96x64mm Dot Matrix, High Brightness and Self-emission
Product Description
- Display color: White,Blue
- Dot matrix: 96 x 64 dots
- Driver IC: SSD1305
- Interface: Parallel, 4-Wire SPI and I2C
- Dot matrix (W x H): 96 x 64 dots
- Active area (W x H): 19.953 x 13.424mm
- Panel size (W x H): 24.9x22.95mmx1.4mm
- Module size: according to the annexed mechanical drawing
- Diagonal A/A size: 0.95 inch
Mini OLED module can be operated at temperatures from -40℃ to +85℃; its storage temperatures range from -40℃ to +85℃. Below is the basic specification of WEO006448A as reference. For any further information such as samples or quotation, please be free to contact us.
Features
| Size | 0.95 inch |
| Resolution | 96*64 |
| Driver ic | SSD1305 |
| Display size | 20.135*13.42mm |
| Size | 25.7*22.2*1.5mm |
| Pins | 23 pins |
| View | Full view |
| Working temperature | -40℃~75℃ |
Product Application
Formike lcd module tft displays are used in Telecommunication Devices, Home Applications, Consumer Applications, Automobile, Industrial Equipments, Medical Instruments and Office Automation Etc.
