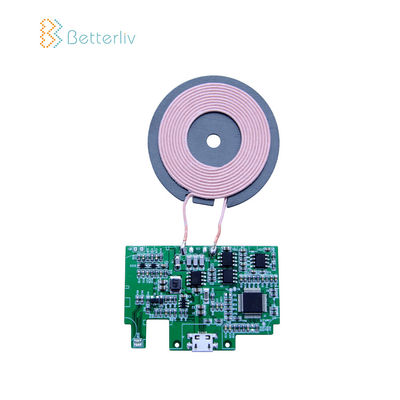

Small Qi Transmitter Module , Wireless Transmitter Module PCBA
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | 10 Watt Small Wireless Charging PCBA | Function: | QC2.0, QC3.0 |
|---|---|---|---|
| Base Material: | FR4 | Copper Thickness: | 1oz |
| Board Thickness: | 1.6mm | Min. Line Width: | 0.1mm |
| Min. Hole Size: | 0.2mm | PCBA Test: | X-ray,AOI Test,Functional Test |
| PCB Test: | Test-rig,Flying Probe Test | ||
| High Light: | Small Qi Transmitter Module,Qi Transmitter Module PCBA,wireless transmitter module PCBA |
||

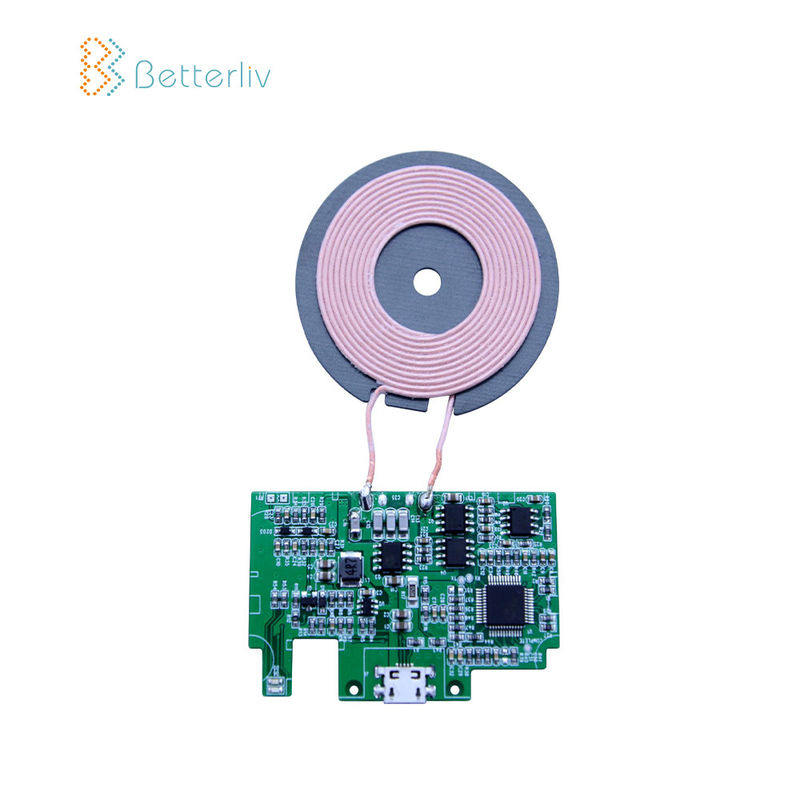

10 Watt Small Wireless Charging PCBA Embedded Fast Qi Charger Wireless Transmitter Module PCBA
Production Description
| No. | Item | Specification |
| 1 | Numbr of Layer | 1-18Layers |
| 2 | Material | FR-4,FR2.Taconic,Rogers, CEM-1 CEM-3,ceramic , crockery Metal-backed Laminate |
| 3 | Surface Finish | HASL(LF), Gold plating, Electroless nickel immersion gold, Immersion Tin, OSP(Entek) |
| 4 | Finish Board Thickness | 0.2mm-6.00 mm(8mil-126mil) |
| 5 | Copper Thickness | 1/2 oz min;12 oz max |
| 6 | Solder Mask | Green/Black/White/Red/Blue/Yellow |
| 7 | Min.Trace Width & Line Spacing | 0.075mm/0.1mm(3mil/4mil) |
| 8 | Min.Hole Diameter for CNC Driling | 0.1mm(4mil) |
| 9 | Min.Hole Diameter for punching | 0.9mm(35mil) |
| 10 | Biggest panel size | 610mm*508mm |
| 11 | Hole Positon | +/-0.075mm(3mil) CNC Driling |
| 12 | Conductor Width(W) |
0.05mm(2mil)or; +/-20% of original artwork |
| 13 | Hole Diameter(H) |
PTH L:+/-0.075mm(3mil); Non-PTH L:+/-0.05mm(2mil) |
| 14 | Outline Tolerance |
0.125mm(5mil) CNC Routing; +/-0.15mm(6mil) by Punching |
| 15 | Warp & Twist | 0.70% |
| 16 | Insulation Resistance | 10Kohm-20Mohm |
| 17 | Conductivity | <50ohm |
| 18 | Test Voltage | 10-300V |
| 19 | Panel Size | 110×100mm(min);660×600mm(max) |
| 20 | Layer-layer misregistration |
4 layers:0.15mm(6mil)max; 6 layers:0.25mm(10mil)max |
| 21 | Min.spacing between hole edge to circuity pqttern of an inner layer | 0.25mm(10mil) |
| 22 | Min.spacing between board oulineto circuitry pattern of an inner layer | 0.25mm(10mil) |
| 23 | Board thickness tolerance |
4 layers:+/-0.13mm(5mil); 6 layers:+/-0.15mm(6mil) |
| 24 | Impedance Control | +/-10% |
| 25 | Different Impendance | +-/10% |
Our service
*Electronic components material purchasing
*Bare PCB fabrication
*PCB Assembly Service. (SMT, DIP)
*FULL Test: AOI, X-Ray, In-Circuit Test (ICT), Functional Test (FCT)
*Cable, and Wire-harness assembly
*Conformal coating service
*Prototyping and mass production...
*PCB layout, PCBA design according to your idea
Advantages
• Strict product liability
• Engineering pretreatment before production
• Production process control
• 100% E-test, 100% visual inspection, including IQC, IPQC, FQC, OQC
• 100% AOI inspection, including X-ray, 3D microscope and ICT
• High-voltage test, impedance control test
• Micro section, soldering capacity, thermal stress test, shocking test
• In-house PCB production
• Focus on low to medium volume production
• Quick and on-time delivery
