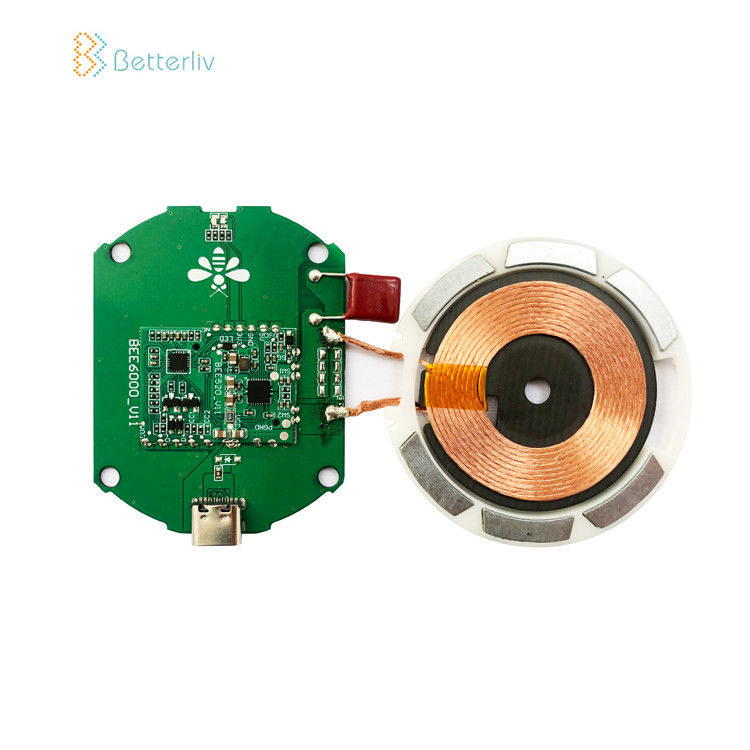

QC3.0 Wireless Charger PCBA , 15W Qi Transmitter Module
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | 15W Qi Wireless Charger Charging PCBA | Usage: | Electronic Prodcuts |
|---|---|---|---|
| Services: | One-stop Services | Testing: | Functional Test |
| Test Service: | E-Test, BGA X-Ray ,AOI | Input Power: | 5V 2A Or 12V 1.5-2A |
| Output: | 5V 1A Or 9V 1.12A-1.67A | Transmission Distance: | 3-8mm |
| Product Standards: | Qi Standard | Other Functions: | Magnetic Suction Function Can Be Used For Iphone 12 |
| High Light: | QC3.0 Wireless Charger PCBA,15W Qi Transmitter Module,15W Wireless Charger PCBA |
||
15W Wireless Charger Transmitter Module QC3.0 PCBA OEM Qi Fast Charging Circuit Board PCBA for iphone 12
Product Description
15W QI fast wireless charger PCBA transmitter module circuit board
Descripiton:
1. Input power: 5V 2A or 12V 1.5-2A, output: 5V 1A or 9V 1.12A-1.67A
2.product weight: 0.03kg
3.charging power: 5W/10W/15W automatic identification
4. transmission distance: 3-8mm
5. the implementation of standards: Qi wireless charging standard
6.Product Certification: CE/FCC/RoHS
7.Feature: Magnetic Suction Function can be used for iphone 12
| Dielectric | FR-4 |
| Board Thickness | 0.1~8.0mm |
| Copper Thickness | Outer Layer:1/3oz~10oz, Inner Layer:1/2oz~6oz |
| Board Thickness Tolerance | ±0.1mm / ±10% |
| Min Mechanical Drilling Hole Size | 6mil(0.15mm) |
| Min Line Width/Line Space | 2/2mil(Outer Layer:1/3oz, Inner Layer:1/2oz) |
| Surface Finishes | OSP, HASL, HASL Lf, Immersion Gold, etc. |
| Solder Mask Colors | Green, Red, White, Black, Blue, Yellow, Orange |
| Specification | Customized |
Main Service
Supplier for Wireless Charging Solution
Supplier for Wireless Charging PCB Supply and Layout
Supplier for Wireless Charging PCB Assembly on SMT
Supplier for Wireless Charging IC
Supplier for Wireless Charging PCBA
Supplier for Wireless Charging PAD TX
Supplier for Wireless Charging PAD RX
Supplier for Wireless Charger both OEM & ODM
Supplier for Wireless Charger of Mobile Phone (CE, FCC, ROSH, QI)
Supplier for ODM Wireless charing related products
Supplier for Wireless Charging Solution
Supplier for Wireless Charging PCB Supply and Layout
Supplier for Wireless Charging PCB Assembly on SMT
Supplier for Wireless Charging IC
Supplier for Wireless Charging PCBA
Supplier for Wireless Charging PAD TX
Supplier for Wireless Charging PAD RX
Supplier for Wireless Charger both OEM & ODM
Supplier for Wireless Charger of Mobile Phone (CE, FCC, ROSH, QI)
Supplier for ODM Wireless charing related products
FAQ
Q1.Do you have your own research and development of the wireless charge program?
A: yes,We are the PCBA oem factory, we have a professional R&D and design engineer team that can meet your various customization needs.
Q2.What's the working temperature of this module?
A:Based on the room temperature,Standard charging: +6eC~+8^. fast charging: +8°C~+12°C.
Q3.Do you test all your goods before delivery?
A: Yes, we have 100% QC before delivery
Q4.May I OEM or ODM the wireless charging module
A: Yes, send us your requirements such as the PCB size and function, we will evaluate and give you some suggestions.
Q5. What is your terms of delivery?
A: EXW, FOB, CFR, CIF
Q6.Whether the size of the coil can be modified ?
A: There are conventional coils 43mm, 45mm, 48mm, 50 mm .If need customized,we will die sinking. But there is a MOQ requirement.
