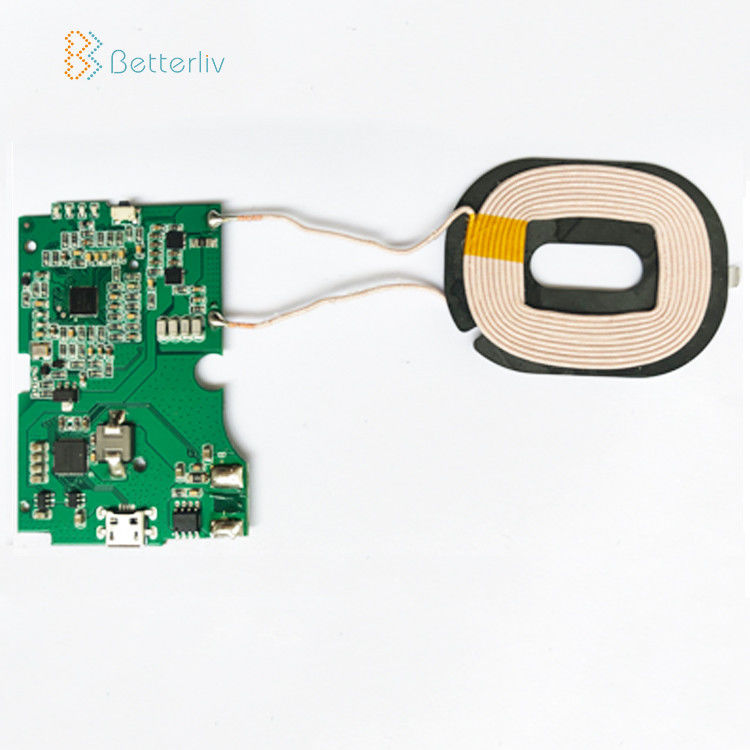

PD charging Power PCBA DC5V Wireless Charger Transmitter Module
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Type: | Consumer Wireless Charger Power Bank Pcba | Support Customization: | QC PD Charging Pcba Could Be Customerized |
|---|---|---|---|
| Copper Thickness: | 1/2 Oz-4 Oz | Testing Service: | 100% E-testing |
| Base Material:: | FR-4 | Board Thicknes: | 0.2-4.0mm |
| Min. Line Width: | 1mil | Surface Finishing: | Hassel |
| High Light: | PD Charging Power PCBA,pd DC5V Wireless Charger Transmitter Module,DC5V Power PCBA |
||
Power PCBA Wireless Charger Power Bank Transmitter Module OEM Printed Circuit Board
Production description
|
input voltage:
|
AC 100~240V
|
output voltage:
|
DC 5.0V
|
|
Input current:
|
0.2A(Max)
|
Output current:
|
2.1A(Max)
|
|
frequency:
|
50/60Hz
|
output power:
|
10.5W(Max)
|
|
efficiency: |
≥80%
|
size:
|
49mm*33mm*19mm
|
|
Protection function:
|
Output Overvoltage, Overcurrent, Overload, Short Circuit Protection
|
||
|
Product description:
|
Protective switches for power adapter USB charging board, mobile phone charger, socket, etc.
|
||
|
Customized service:
|
Support customized QC3.0 18w 20w pd mobile phone charger
|
||
PCB/PCBA services
1. Test: ICT and functional with full tech and engineering support staff
2. FR-4, FR-4 High TG, CEM-1, CEM-3, Aluminum base material.
3. Single-sided PCB, double-sided PCB, multi-layer PCB, competitive price, good quality and good service.
4. Prototype qualifications through production volumes
5. HAL, HAL lead free, Immersion Gold/ Silver/Tin, OSP surface treatment.
6. Printed Circuit Boards are 94V0 compliant, and adhere to IPC610 Class 2 international PCB standard.
7. Quantities range from prototype to medium and batch production.
Our advantages
Betterliv offers low to medium volume, high mix, PCBA services and end-to-end integration services for products in industries including life-science, pharmaceutical, power management, medical device, semiconductor, and alternative energy. Betterliv with exceptional turnkey manufacturing services, we are able to produce and fully integrate PCB assemblies for OEMs seeking a one-stop manufacturing solution.
1. High-end, Small volume and Various kinds of PCBA service offered.
2. Speedy, Flexible and one-stop service in PCBA.
3. Assembly and Purchasing service offere or their pointed agents.
4. Transparent quotation,cost and benefit are detailedly opened to customer.
5. With professional Engineers and Long-term successful experience in cooperating with customers inland and overseas, all new projects can be developed faster and better than expected.
6. With USA or Japan imported tin cream and tin bar, and 100% AOI testing during production, all PCBAs we made are more reliable.
Products Capability
| Items | PCB capacity |
| Product name | SMT circuit board manufacturer custom electronic assembly pcb pcba |
| Material | FR-4; High TG FR-4; Aluminum; CEM-1; CEM-3; Rogers, etc |
| PCB type | Rigid, flexible, rigid-flexible |
| Layer NO. | 1, 2, 4, 6, up to 24 layer |
| Shape | Rectangular, round, slots, cutouts, complex, irregular |
| Max PCB dimensions | 1200mm*600mm |
| Board Thickness | 0.2mm-4mm |
| Thickness Tolerance | ±10% |
| Min Hole Size | 0.1mm (4 mil) |
| Copper Thickness | 0.5 OZ-3OZ (18 um-385 um) |
| Copper Plating hole | 18um-30um |
| Min Trace Width | 0.075mm (3mil) |
| Min Space Width | 0.1mm (4 mil) |
| Surface finish | HASL, LF HASL, Imm Gold, Imm Silver, OSP etc |
| Solder mask | Green, red, white, yellow, blue, black, orange, purple |
| Items | PCBA capacity |
| Product name | SMT circuit board manufacturer custom electronic assembly pcb pcba |
| Assembly details | SMT and Thru-hole, ISO SMT and DIP lines |
| Testing on products | Testing jig/mold , X-ray Inspection, AOI Test, Functional test |
| Quantity | Min quantity : 1pcs. Prototype, small order, mass order, all OK |
| Files needed | PCB : Gerber files(CAM, PCB, PCBDOC) |
| Components : Bill of Materials(BOM list) | |
| Assembly : Pick-N-Place file | |
| PCB Panel Size | Min size : 0.25*0.25 inches(6*6mm) |
| Max size : 1200*600mm | |
| Components details | Passive Down to 0201 size |
| BGA and VFBGA | |
| Leadless Chip Carriers/CSP | |
| Double-sided SMT Assembly | |
| Fine BGA Pitch to 0.2mm(8mil) | |
| BGA Repair and Reball | |
| Part Removal and Replacement | |
| Component package | Cut Tape, Tube, Reels, Loose Parts |
| PCB+ assembly process | Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity |
