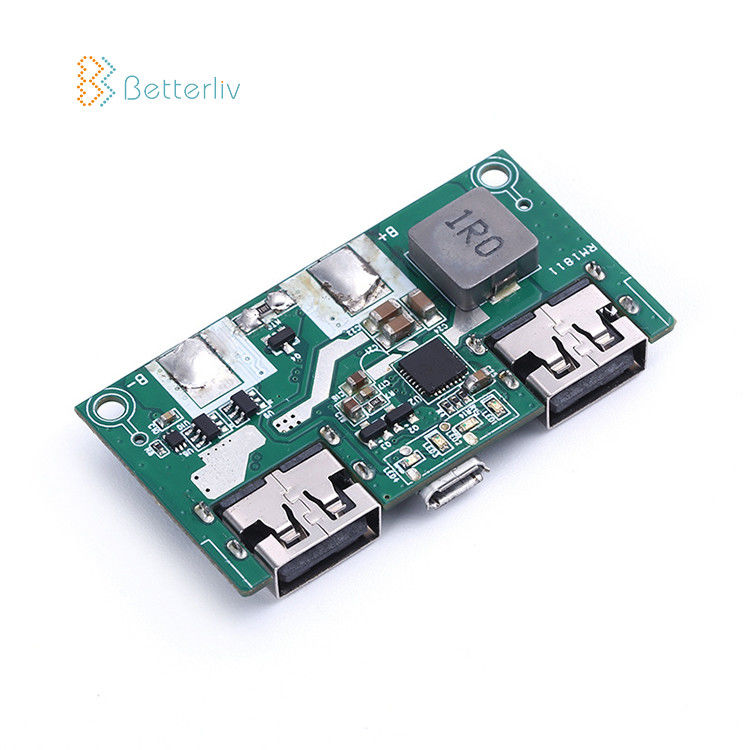

OEM Power PCBA , Pcb Layout Design For Power Supply Circuit
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Base Material:: | FR-4 | Copper Thickness: | 1oz |
|---|---|---|---|
| Board Thickness: | 1.6mm | Min. Hole Size: | 0.3mm |
| Surface Finishing: | HALS, HALS OSP Etc | Testing Service: | 100% E-testing |
| High Light: | OEM Power PCBA Pcb Layout Design,OEM Pcb Layout Design For Power Supply Circuit |
||
Custom PCB Design layout Power PCBA Supply PCB Layout Design Circuit
PCB/PCBA services
Betterliv's ONE STOP SHOP FOR PCBA AND SYSTEM INTEGRATION, all PCBAs are verified for component-placement accuracy and tested for functionality in several stages, including x-ray, automated optical inspection (AOI), in-circuit testing (ICT), and functional test services.
1. Single-sided PCB, double-sided PCB, multi-layer PCB, competitive price, good quality and good service.
2. FR-4, FR-4 High TG, CEM-1, CEM-3, Aluminum base material.
3. HAL, HAL lead free, Immersion Gold/ Silver/Tin, OSP surface treatment.
4. Printed Circuit Boards are 94V0 compliant, and adhere to IPC610 Class 2 international PCB standard.
5. Quantities range from prototype to medium and batch production.
Our advantages
1. High-end, Small volume and Various kinds of PCBA service offered.
2. Speedy, Flexible and one-stop service in PCBA.
3. Assembly and Purchasing service offere or their pointed agents.
4. Transparent quotation,cost and benefit are detailedly opened to customer.
5. With professional Engineers and Long-term successful experience in cooperating with customers inland and overseas, all new projects can be developed faster and better than expected.
6. With USA or Japan imported tin cream and tin bar, and 100% AOI testing during production, all PCBAs we made are more reliable.
Products Capability
| Items | PCB capacity |
| Product name | SMT circuit board manufacturer custom electronic assembly pcb pcba |
| Material | FR-4; High TG FR-4; Aluminum; CEM-1; CEM-3; Rogers, etc |
| PCB type | Rigid, flexible, rigid-flexible |
| Layer NO. | 1, 2, 4, 6, up to 24 layer |
| Shape | Rectangular, round, slots, cutouts, complex, irregular |
| Max PCB dimensions | 1200mm*600mm |
| Board Thickness | 0.2mm-4mm |
| Thickness Tolerance | ±10% |
| Min Hole Size | 0.1mm (4 mil) |
| Copper Thickness | 0.5 OZ-3OZ (18 um-385 um) |
| Copper Plating hole | 18um-30um |
| Min Trace Width | 0.075mm (3mil) |
| Min Space Width | 0.1mm (4 mil) |
| Surface finish | HASL, LF HASL, Imm Gold, Imm Silver, OSP etc |
| Solder mask | Green, red, white, yellow, blue, black, orange, purple |
| Items | PCBA capacity |
| Product name | SMT circuit board manufacturer custom electronic assembly pcb pcba |
| Assembly details | SMT and Thru-hole, ISO SMT and DIP lines |
| Testing on products | Testing jig/mold , X-ray Inspection, AOI Test, Functional test |
| Quantity | Min quantity : 1pcs. Prototype, small order, mass order, all OK |
| Files needed | PCB : Gerber files(CAM, PCB, PCBDOC) |
| Components : Bill of Materials(BOM list) | |
| Assembly : Pick-N-Place file | |
| PCB Panel Size | Min size : 0.25*0.25 inches(6*6mm) |
| Max size : 1200*600mm | |
| Components details | Passive Down to 0201 size |
| BGA and VFBGA | |
| Leadless Chip Carriers/CSP | |
| Double-sided SMT Assembly | |
| Fine BGA Pitch to 0.2mm(8mil) | |
| BGA Repair and Reball | |
| Part Removal and Replacement | |
| Component package | Cut Tape, Tube, Reels, Loose Parts |
| PCB+ assembly process | Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity |
