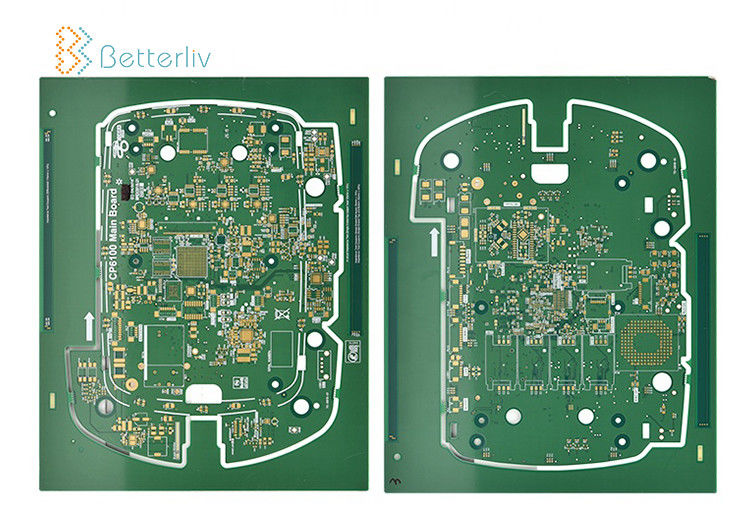

OEM PCB Control Board 225x138.5mm 0.2MM-7MM Board Thickness

Large Image : OEM PCB Control Board 225x138.5mm 0.2MM-7MM Board Thickness Get Best Price

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Betterliv/OEM
Certification:	ISO9001 FCC
Model Number:	OEM

Payment & Shipping Terms:

Payment Terms:	T/T, Western Union, Credit Card

Contact Now

Detailed Product Description

Product Name:	PCBA Smt Assembly PCB Prototype	Usage:	OEM Electronics
Base Material:	FR4, High TG FR4, High Frequency, Alum, FPC	Board Thickness:	0.2MM-7MM
Copper Thickness:	1oz-10oz	Surface Finishing:	HASL,ENIG,immersion Silver,immersion Tin,OSP
High Light:	OEM PCB Control Board , 225x138.5mm PCB Control Board , 225x138.5mm main control board

Low Cost PCB Fabrication 8 Layer PCB Board PCB Fabrication Service Custom PCB Printer

Product Description

Product name	8 LAYERS DOUBLE SIDE PCBA CONTROL MAIN BOARD
Accept OEM	Yes
PCB Layers	8 layers
Material	FR4 Tg170
Size	225*138.5mm
Min Tracing and Spacing	3 mil / 3 mil
Min BGA Pad	0.45mm / 6 pcs BGA
Min component size	0201
Technology/Surface Finish	Lead-Free / ENIG-2U" min
SMT+DIP	Double side SMT + Single side DIP
Testing service	Function test / AOI / X- Ray / 100% E-testing

Our service
*Electronic components material purchasing
*Bare PCB fabrication
*PCB Assembly Service. (SMT, DIP)
*FULL Test: AOI, X-Ray, In-Circuit Test (ICT), Functional Test (FCT)
*Prototyping and mass production...
*PCB layout, PCBA design according to your idea

Advantages

*R&D team support
*UL, RoHS,ISO9001
*Advanced production line and promtly delivery.
*Honest Credibility in China.
*Professional and abundant experience in PCB.
*Competitive price and good quality.
*Excellent after-sales service.
