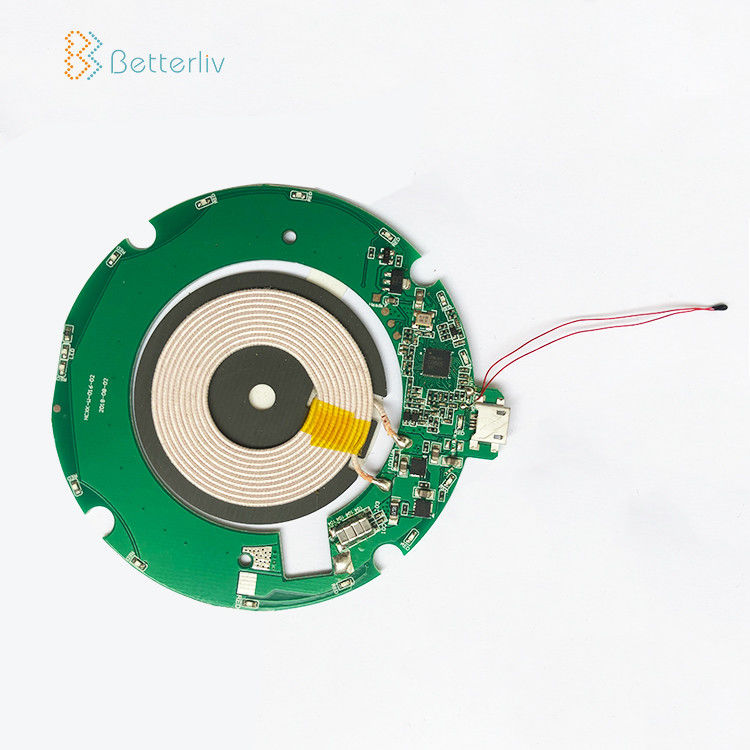

OEM ODM Green Ink Wireless Charger PCBA For Electronic Parts
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Type: | Consumer Electronics Pcba | Services: | One-stop Services |
|---|---|---|---|
| Solder Mask Color: | Green Ink | Tolerance Of Etching: | ±1mil(±25um) |
| Board Thickness Tolerance: | +/-10% | Mpedance Control And Tolerance: | 50Ω±10% |
| Copper Thickness: | 35um | Min. Hole Size: | 0.25mm |
| Min. Line Spacing & Width: | 0.15mm | Twist&Wrap: | ≤ 0.5% |
| High Light: | Green Ink Wireless Charger PCBA,OEM Electronic Parts Wireless Charger PCBA,OEM Green Ink Electronic Parts PCBA |
||
OEM Custom Wireless Charger PCBA Assembly for Electronic Parts PCBA
Product Description
| 1 | Description | PCB Specification |
| 2 | PCB Specification | FR-4/HTG150-180 FR-4/CEM-1/CEM-3/Aluminum |
| 3 | Layer | 1-20 |
| 4 | Min Trace Width | 0.15mm |
| 5 | Min Space Width | 0.15mm |
| 6 | V-cut angle | 25°,30°,45°,60° |
| 7 | Impedance control and tolerance | 50Ω±10% |
| 8 | Surface Finish/Plating | HASL/Lead Free HASL/OSP/Gold Plating/Immersion Gold/ENIG |
Our Advantages
1. Qualified PCB Vendor over 10 years with European and American-standards;
2. No MOQ & On-time Delivery;
3. UL (E473820) and ISO 9001-2015 and RoHS certification, etc.
4. One-Stop Turnkey EMS Service;
5. E-test, X-ray, AIO test, OC, 100% functional quality test.
2. No MOQ & On-time Delivery;
3. UL (E473820) and ISO 9001-2015 and RoHS certification, etc.
4. One-Stop Turnkey EMS Service;
5. E-test, X-ray, AIO test, OC, 100% functional quality test.
FAQ
Q1.Do you have your own research and development of the wireless charge program?
A: yes,We are the PCBA oem factory, we have a professional R&D and design engineer team that can meet your various customization needs.
Q2.What's the working temperature of this module?
A:Based on the room temperature,Standard charging: +6eC~+8^. fast charging: +8°C~+12°C.
Q3.Do you test all your goods before delivery?
A: Yes, we have 100% QC before delivery
Q4.May I OEM or ODM the wireless charging module
A: Yes, send us your requirements such as the PCB size and function, we will evaluate and give you some suggestions.
Q5. What is your terms of delivery?
A: EXW, FOB, CFR, CIF
Q6.Whether the size of the coil can be modified ?
A: There are conventional coils 43mm, 45mm, 48mm, 50 mm .If need customized,we will die sinking. But there is a MOQ requirement.
