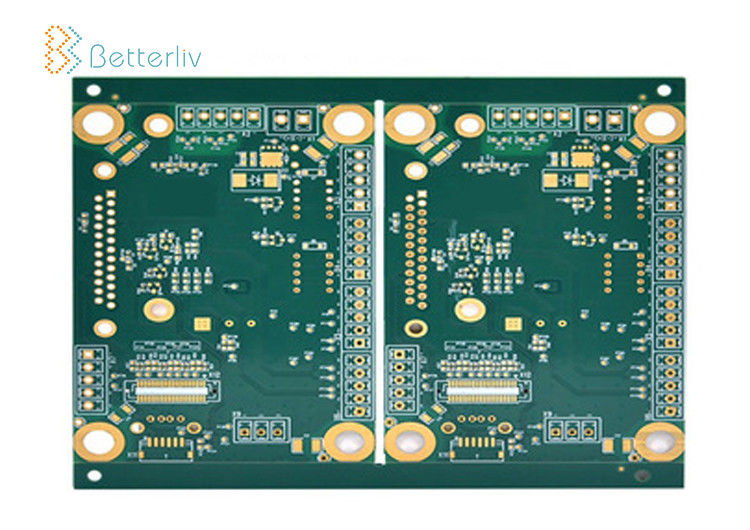

ISO9001 High Tg Diy 4 Layer PCB , Fabrication Quick Turn PCB
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Number Of Layers: | 4 Layers | Copper Thickness: | 1oz |
|---|---|---|---|
| Base Material: | FR-4 | Min. Line Width: | 0.1mm |
| Min. Line Spacing: | 0.1mm | Board Thickness: | 1.6mm |
| High Light: | High Tg Diy 4 Layer PCB,ISO9001 Fabrication Quick Turn PCB,ISO9001 High Tg Quick Turn PCB |
||
High Tg PCB 4 Layer Board Multilayer Printed Circuit Board PCB Board Fabrication Quick Turn PCB Assembly
PCB assembly capability
|
Name
|
PCBA
|
|
Layer counts
|
2-30
|
|
Material
|
FR-4 , High-frequency , Cu-base , Al-base
|
|
Maximum Size
|
500mm X1100mm
|
|
Board Outline Tolerance
|
±0.13mm
|
|
Board Thickness
|
0.20mm--6.00mm
|
|
Thickness Tolerance ( t≥0.8mm)
|
±8%
|
|
Thickness Tolerance ( t ＜ 0.8mm)
|
±0.08mm
|
|
Insulation Layer Thickness
|
0.075mm--5.00mm
|
|
Min Line
|
0.075mm
|
|
Min Space
|
0.075mm
|
|
Outer Copper Thickness
|
35um--420um
|
|
Inner Copper Thickness
|
17um--210um
|
|
Drill Hole (Mechanical)
|
0.15mm--6.35mm
|
|
Finish Hole (Mechanical)
|
0.10mm--6.30mm
|
|
Diameter Tolerance (Mechanical)
|
0.075mm
|
|
Registration (Mechanical)
|
0.05mm
|
|
Aspect Ratio
|
13:1
|
|
Solder Mask Type
|
LPI
|
|
Min Soldermask Bridge
|
0.08mm
|
|
Min Soldermask Clearance
|
0.05mm
|
|
Plug Hole Diameter
|
0.25mm--0.60mm
|
|
Impedance Control Tolerance
|
±10%
|
|
Surface Finish
|
HASL,LF-HASL,ENIG,Imm Tin,Imm Ag,OSP, Gold Finger
|
Our Advantages
1. Quick lead time of prototype & Punctual delivery.
2. Think highly of quality -- High pass rate
Pass rate of prototype: 100%
Pass rate of mass production: over 99.95%
3. Provide free consultation service of PCB and PCBA design.
4. We accept small order as well as bulk order.
5. Certification: Rosh, Reach, ISO 9001, 14001, UL, etc.
6. Provide OEM and ODM service.
