I2C OLED Display Module 128x64 Dots 2.4 Inch Monochrome White Yellow
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Size: | 2.4 Inch | Number Of Pixels: | 128x64 |
|---|---|---|---|
| Pins: | 31 Pin Or 23 Pin | Color: | White Or Yellow |
| Panel Size: | 60.5x37.0x2.01mm | Active Area: | 55.01x27.49mm |
| Interface: | Parallel, I²C, 4 Wire SPI | Pixel Size: | 0.4X0.4mm |
| Module Construction: | COG Or TAB | Duty: | 1/64 |
| High Light: | I2C OLED Display Module,128x64 OLED Display Module,oled 128x64 i2c |
||

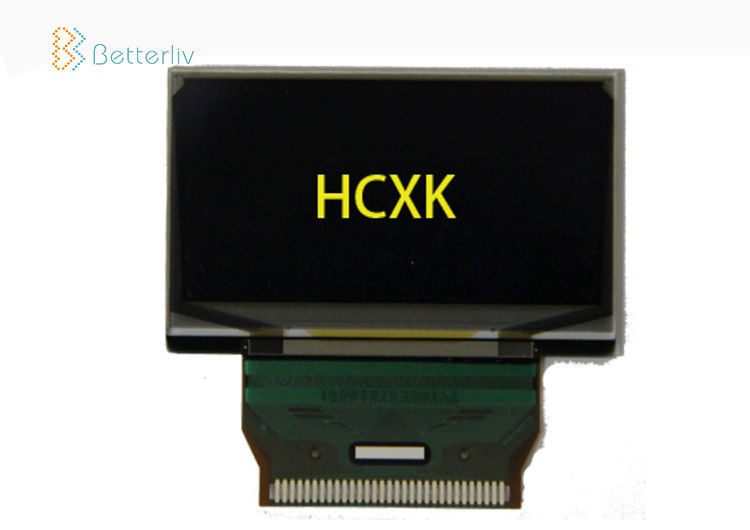

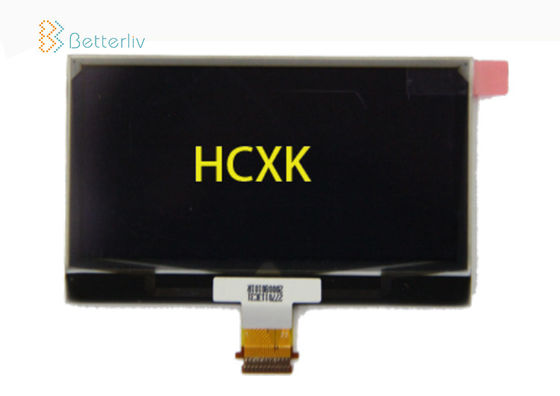

Mini I2C 128x64 Dots 2.4 Inch OLED Display Module TAB COG Monochrome White Yellow
Product Description
This displays are 2.4" diagonal, and very readable due to the high contrast of an OLED display. This display is made of 128x64 individual OLED pixels, each one turned on or off by the controller chip. Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast; we really like this graphic display for its crispness!
1) Display Mode: Passive Matrix
2) Display Color: Monochrome (White)
3) Drive Duty: 1/64 Duty
4) Wide viewing angel: >160 degree
5) Brightness: 120 cd/m2
6) Dark Room Contrast: >2000:1
7) Sleep Mode Current for VCC: 1uA
| Panel dimension | 60.5x37.0x2.0 |
| Active area | 55.02x27.49 |
| Pixel Pitch | 0.43(W)×0.43 (H) |
| Diagonal A/A Size | 2.4 inch |
| Dot Matrix | 128(W)×64(H) |
| Aperture Rate | 78% |
Our products are used in a wide range of applications, such as electronic equipment, medical equipment, industrial equipment and smart home.
