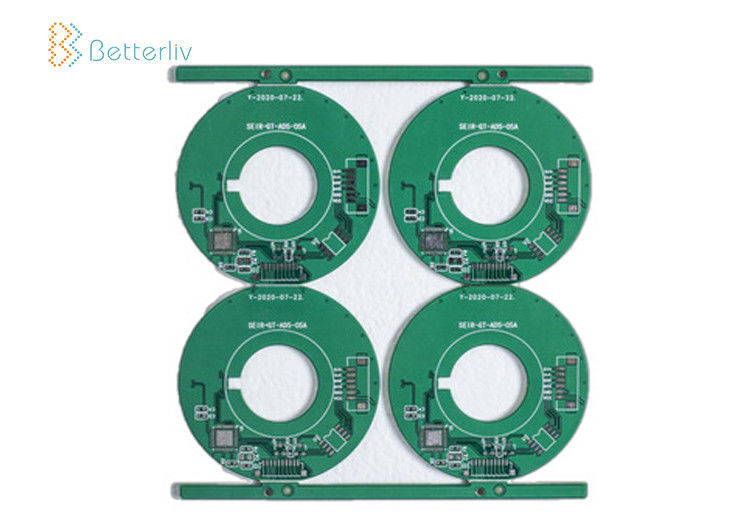

high TG Double Sided Circuit Board Lead free HASL Oem Service
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Type Of Material: | FR-4,high TG Board,aluminum | Min. Line Spacing: | 3mil |
|---|---|---|---|
| FR-4,high TG Board,aluminum: | 1OZ | Board Thickness: | 1.6mm |
| Surface Finishing: | Lead Free HALS | Certificate: | ISO9001/CE/ROHS |
| High Light: | High TG Double Sided Circuit Board,Lead Free HASL Double Sided Circuit Board,Oem high tg pcb |
||
Custom Make Two Sided PCB Board 2 Layer Circuit Board Prototype One-Stop Oem Service Circuit Board Pcb Assembly
PCB Production Capability:
| Drilling | Min size | 0.0078”(0.2mm) | |
| Drill deviation | ±0.002″(0.05mm) | ||
| PTH hole tolerance | ±0.002″(0.005mm) | ||
| NPTH hole tolerance | ±0.002″(0.005mm) | ||
|
Solder mask
|
Color | Green,white,black,red,blue… | |
| Min solder mask clearanace | 0.003″(0.07mm) | ||
| Thickness | (0.012*0.017mm) | ||
| Silkscreen | Color | white,black,yellow,blue… | |
| Min size | 0.006″(0.15mm) | ||
| E-test | Function Test | 100% Functional test | |
| PCBA Testing | X-ray,AOI Test,Functional test | ||
| Pcb assembly | one-stop service electronic manufacxturer service | ||
| Component sourcing | Yes | ||
| Certificate | IATF16949, ISO13485, ISO9001 | ||
WHY CHOOSE US?
High Quality
ISO9001 certified company, we have a very robust quality system and professional quality team;
Reliable Supply Chain,We have established long-term strategic cooperation with the top electronic components manufacturers all over the world;High manufacturing capability, our PCB can reach a max layers of 64, minimum placement component size can meet 0201 and minimum placement spacing of BGA can meet 0.3mm;We have complete inspection and testing for PCBA, including SPI,AOI,ICT,FCT,X-RAY,ROHS and aging.
Quick Response
We offer fast and opened BOM quotation to customers;10 years of cooperation experience with European and North American clients, quickly and professionally respond customer requirements.
One Stop Service
We professionally offer the service of PCB Assembly (SMT, DIP, MI, AI), component procurement, product final assembly, testing, PCBA conformal coating, electronic product design and peripheral products support.
Hi, if you have any PCB requirements please send PCB specification, we will reply to you ASAP. Thank you& best regards!
