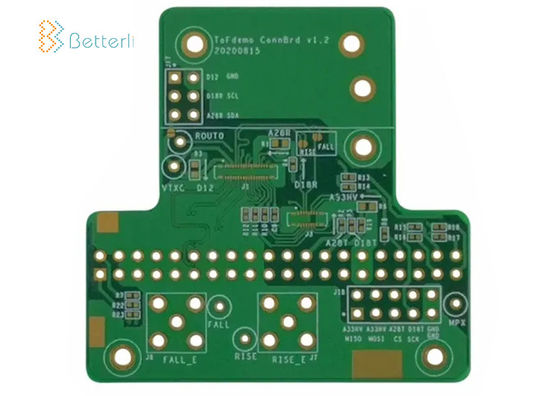

FR4 2 Layer PCB Board , Two Sided PCB Green Solder for OEM Electronics
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Number Of Layers: | 4-layer | Base Material: | FR-4/aluminum/ceramic/cem-3/FR-1 |
|---|---|---|---|
| Product Type: | Oem Pcb/printed Circuit Board | Copper Thickness: | 0.25 0z-12 0z |
| Board Thickness: | 0.2mm--3.2mm | Min. Hole Size: | 0.075mm(3mil) |
| High Light: | FR4 2 Layer PCB Board,Green Solder Two Sided PCB,FR4 Two Sided PCB |
||
FR4 2 Layer PCB Board Doubled Sided Printed Circuit Board Green Solder
PCB Production Capability:
|
Article
|
Description
|
Capability
|
|
Material
|
Laminate materials
|
FR4, High TG FR4, High Frequency, Alum, FPC...
|
|
Board Cutting
|
Number of layers
|
1-48
|
|
Min.thickness for inner layers
(Cu thickness are excluded) |
0.003”(0.07mm)
|
|
|
Board Thickness
|
Standard
|
(0.1-4mm±10%)
|
|
Min.
|
Single/Double:0.008±0.004”
|
|
|
4layer:0.01±0.008”
|
||
|
8layer:0.01±0.008”
|
||
|
Bow and twist
|
no more than 7/1000
|
|
|
Copper Weight
|
Outer Cu weight
|
0.5-4 0z
|
|
Inner Cu weight
|
0.5-3 0z
|
|
|
Drilling
|
Min size
|
0.0078”(0.2mm)
|
|
Drill deviation
|
±0.002″(0.05mm)
|
|
|
PTH hole tolerance
|
±0.002″(0.005mm)
|
|
|
NPTH hole tolerance
|
±0.002″(0.005mm)
|
WHY CHOOSE US?
High Quality
ISO9001 certified company, we have a very robust quality system and professional quality team;
Reliable Supply Chain,We have established long-term strategic cooperation with the top electronic components manufacturers all over the world;High manufacturing capability, our PCB can reach a max layers of 64, minimum placement component size can meet 0201 and minimum placement spacing of BGA can meet 0.3mm;We have complete inspection and testing for PCBA, including SPI,AOI,ICT,FCT,X-RAY,ROHS and aging.
Quick Response
We offer fast and opened BOM quotation to customers;10 years of cooperation experience with European and North American clients, quickly and professionally respond customer requirements.
One Stop Service
We professionally offer the service of PCB Assembly (SMT, DIP, MI, AI), component procurement, product final assembly, testing, PCBA conformal coating, electronic product design and peripheral products support.
Hi, if you have any PCB requirements please send PCB specification, we will reply to you ASAP. Thank you& best regards!
