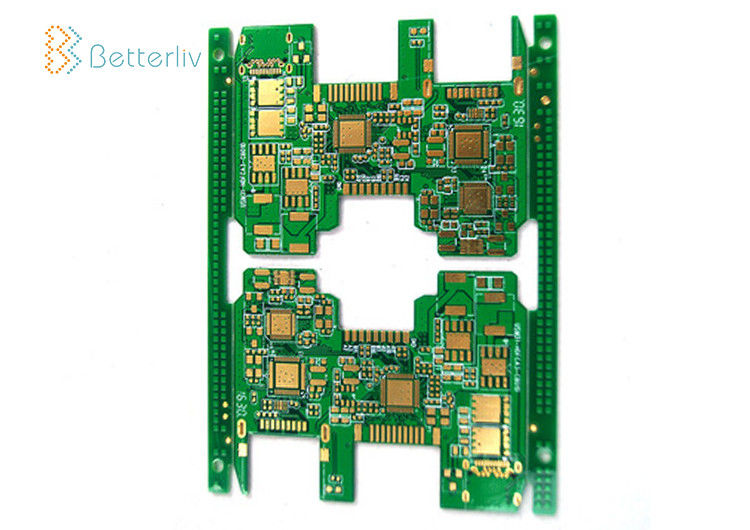

Four Layer Heavy Copper Pcb ISO9001 FCC certificate

Large Image : Four Layer Heavy Copper Pcb ISO9001 FCC certificate Get Best Price

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Betterliv/OEM
Certification:	ISO9001 FCC
Model Number:	OEM

Payment & Shipping Terms:

Payment Terms:	T/T, Western Union, Credit Card

Contact Now

Detailed Product Description

Product Name:	4 Layer PCB Assemble	Min. Line Width:	0.15mm
Solder Mask Color:	Green,white,black,red,blue...	PCB Outline:	Square,circle,irregular(with Jigs)
Sub-assembly:	Plastic,metal,screen	Min Solder Mask Clearanace:	Aranace: 0.07mm
High Light:	FCC certificate Four Layer Heavy Copper Pcb , ISO9001 FCC certificate Four Layer Copper Pcb , ISO9001 FCC Four Layer Copper Pcb

Customization Four Layer PCB And Multilayer Custom Circuit Board Design Heavy Copper PCB

PCB Assembly Capability

Article	Description	Capability
Laminate Materials	FR4, high TG FR4, high frequency, alum, FPC
Board Cutting	Number of layers	1-48
Board Cutting	Min.thickness for inner layers (Cu thickness are excluded)	0.003”(0.07mm)
Board Thickness	Standard	(0.1-4mm±10%)
	Min.	Single/Double:0.008±0.004”
		4layer:0.01±0.008”
		8layer:0.01±0.008”
	Bow and twist	no more than 7/1000
Copper Weight	Outer Cu weight	0.5-4 0z
Copper Weight	Inner Cu weight	0.5-3 0z
Drilling	Min size	0.0078”(0.2mm)
	Drill deviation	±0.002″(0.05mm)
	PTH hole tolerance	±0.002″(0.005mm)
	NPTH hole tolerance	±0.002″(0.005mm)
Solder Mask	Color	Green,white,black,red,blue…
	Min solder mask clearanace	0.003″(0.07mm)
	Thickness	(0.012*0.017mm)
Silkscreen	Color	white,black,yellow,blue…
Silkscreen	Min size	0.006″(0.15mm)

Our Advantages

1. Quick lead time of prototype & Punctual delivery.

2. Think highly of quality -- High pass rate
Pass rate of prototype: 100%
Pass rate of mass production: over 99.95%

3. Provide free consultation service of PCB and PCBA design.

4. We accept small order as well as bulk order.

5. Certification: Rosh, Reach, ISO 9001, 14001, UL, etc.

6. Provide OEM and ODM service.

Here is why our customers choose us for their PCB Fabrication & Assembly needs:
Long known as industry pioneers,we continue that reputation by offering full in-house PCB manufacturing and quickturn/small quantity assembly capabilities.We invite you to discover our PCB quality,reliability,and exceptional customer service.
