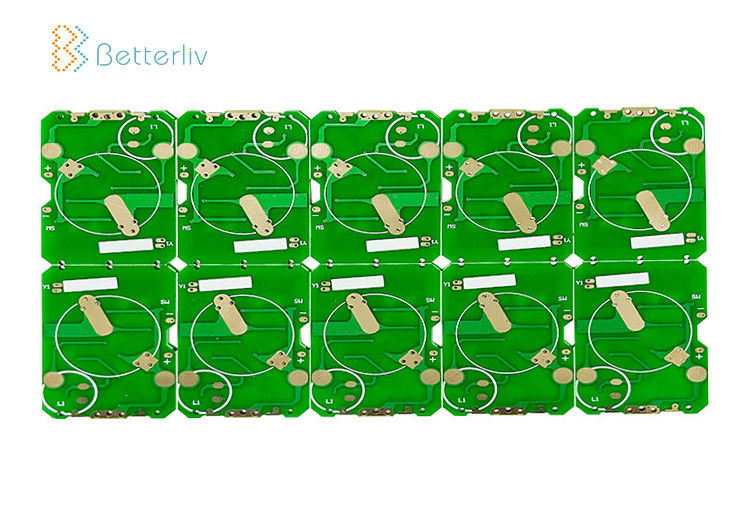

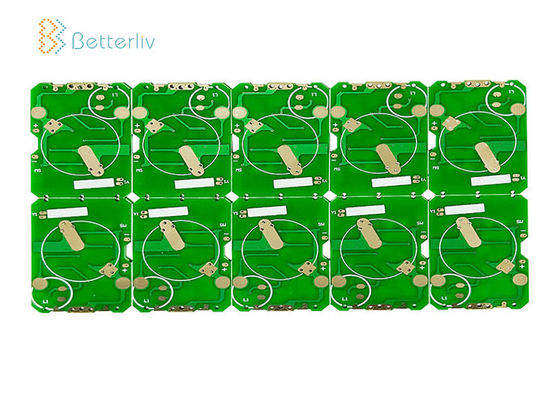

6 Layer FR4 Audio Amplifier PCB Board Immersion Gold Surface processing

Large Image : 6 Layer FR4 Audio Amplifier PCB Board Immersion Gold Surface processing Get Best Price

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Betterliv/OEM
Certification:	ISO9001 FCC
Model Number:	OEM

Payment & Shipping Terms:

Payment Terms:	T/T, Western Union, Credit Card

Contact Now

Detailed Product Description

Product Name:	6 Layer Pcb Assembly	Base Material:	FR-4
Surface Finishing:	Lead Free-HASL, HASL	Surface Processing:	Immersion Gold
Copper Thickness:	1oz~2oz	Min. Line Spacing:	3mil
High Light:	6 Layer FR4 Audio Amplifier PCB Board , Immersion Gold Audio Amplifier PCB Board 6 Layer , 6 Layer Immersion Gold FR4 Amplifier PCB

Custom PCB Design 6 Layer FR4 PCB Audio Amplifier Board Printed Circuit Board Multilayer PCB Fabrication PCB Assembly

PCB Manufacture Capability

Items	Capacity
1.Material	FR4, (High Tg FR4, General Tg FR4, Middle Tg FR4), Lead-Free Solder Sheet, Halogen Free FR4, Ceramic Filling Material, Teflon, PI Material, BT Material, PPO, PPE etc.
2.Board thickness	Mass production: 394mil(10mm) Samples: 17.5mm
3.Surface finish	HASL, Immersion Gold, Immersion Tin, OSP, ENIG + OSP, Immersion Silver, ENEPIG, Gold Finger
4.PCB Max panel size	1150mm × 560mm
5.Layer	Mass production: 2~58 layers / Pilot run: 64 layers, Flexible PCB: 1-12 Layers
6.Min hole size	Mechanical drill: 8mil(0.2mm) Laser drill: 3mil(0.075mm)
7.PCBA QC	X-ray, AOI Test, Functional Test
8.Special Process	Buried Hole, Blind Hole, Embedded Resistance, Embedded Capacity, Hybrid, Partial hybrid, Partial high density, Back drilling, and Resistance control.
9.Our service	PCB, Turnkey PCBA, PCB Clone, Housing, PCB Assembly, Component sourcing, PCB manufacturing from 1 to 64 layers,One stop services.

Our service
• Electronic components material purchasing
• Bare PCB fabrication
• PCB Assembly Service. (SMT, DIP)
• FULL Test: AOI, X-Ray, In-Circuit Test (ICT), Functional Test (FCT)
• Conformal coating service
• Prototyping and mass production...
• PCB layout, PCBA design according to your idea

Advantages
1. Program and functional test and package by Free.
2. High quality: IPC-A-610E standard, E-test, X-ray, AOI test, QC, 100% functional test.
3. Professional service: PCB/FPC/Aluminium Making, SMT, DIP, Component Sourcing, OEM with 12 years experience.
4. Certifications: UL, 94v-0, CE, SGS, FCC, RoHS, ISO9001:2008, ISO14001,ISO13485,TS16949
