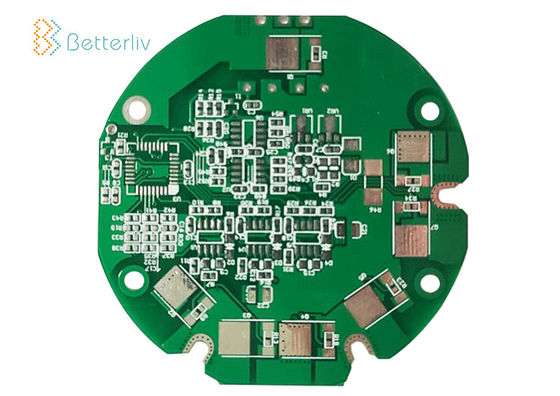

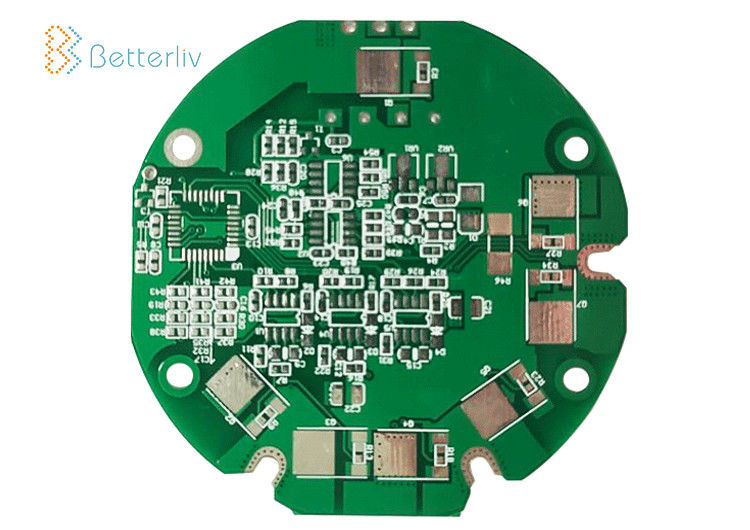

4 Layers High Temperature Pcb HASL lead free Surface treatment
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | 4 Layer FR4 PCB Assemble | Base Material: | FR4, TG, CEM-1, CEM-3, Aluminum |
|---|---|---|---|
| Board Thickness: | 1.6mm, 0.2mm-3.2mm | Silkscreen: | White,black,ect |
| Base Material: | FR4 | Surface Treatment: | HASL, Lead Free, Immersion Gold, Gold-plate, OSP, Tin, ENIG Etc |
| High Light: | 4 Layers High Temperature Pcb,Lead Free High Temperature Pcb,4 Layers lead free pcb |
||
4 Layers Control Board High Temperature PCB Circuit Board Printing Service PCB Design And Fabrication
PCB assembly capability
| Item | Capability |
| Base Material |
FR4, High TG FR4, Aluminium, Rogers, 94V0, CEM-1, CEM-3, Totking AL, Teflon, FPC |
| Board Layer | 1 to 20 layer pcb |
| Board Thickness | 0.2mm to 7.0mm ±10% |
| Copper Thickness | 0.5oz to 6oz |
| Surface Treatment |
HASL, HASL-Lead Free, ENIG, Immersion Tin, Immersion Silver, OSP, hard gold plating, gold finger, OSP and Carbon |
| Min Line Width and Space | 3mil (0.0762mm) |
| Min Hole Size | 0.2mm |
| Hole Size Tolerance | PTH ±0.076mm, NPTH ±0.05mm |
| Inner Copper | 20μm |
| Min Solder Mask Bridge | ≥0.08mm |
| Max Production Size | 600mm*1200mm |
| Functional TestS | ample flying test, mass production fixture tool test, PCBA AOI test |
Our Advantages
1. Quick lead time of prototype & Punctual delivery.
2. Think highly of quality -- High pass rate
Pass rate of prototype: 100%
Pass rate of mass production: over 99.95%
3. Provide free consultation service of PCB and PCBA design.
4. We accept small order as well as bulk order.
5. Certification: Rosh, Reach, ISO 9001, 14001, UL, etc.
6. Provide OEM and ODM service.
Here is why our customers choose us for their PCB Fabrication & Assembly needs:
Long known as industry pioneers,we continue that reputation by offering full in-house PCB manufacturing and quickturn/small quantity assembly capabilities.We invite you to discover our PCB quality,reliability,and exceptional customer service.We only service for foreign customers.
