39 Pin Small OLED Display
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Size: | 1.29 Inch | Number Of Pixels: | 128 RGBx 96 |
|---|---|---|---|
| Pins: | 39 Pin Or 34 Pin | Color: | 262, 144 Colors |
| Panel Size: | 33x25.8x1.21mm | Active Area: | 26.279x19.708mm |
| Interface: | Parallel, 4 Wire SPI | Pixel Size: | 0.045x0.19 |
| Drive IC: | SSD1351 | Module Consruction: | COF |
| Highlight: | 128*96 Small OLED Display,39 Pin Small OLED Display,1.29 inch small oled screen |
||

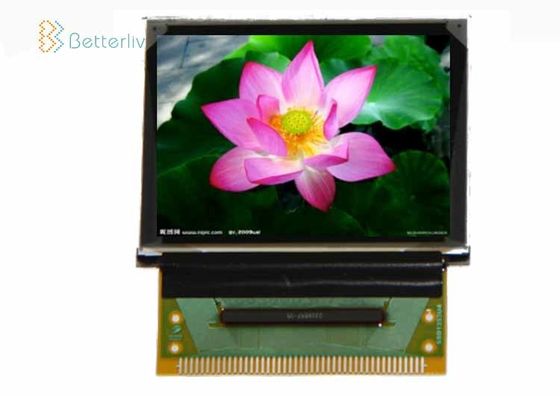

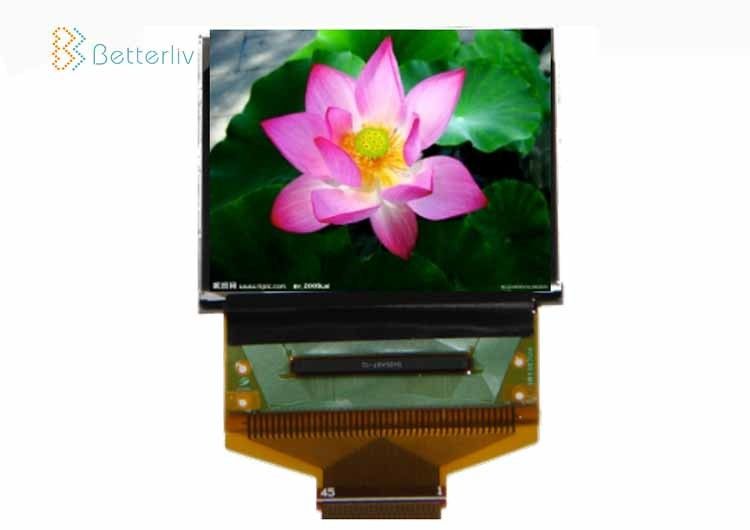

1.29 inch 39 Pin Full Color OLED Display Screen Module SSD1351UR1 Drive IC 128 RGB*96 SPI Interface
Product Description
- Small molecular organic light emitting diode.
- Color : 262K color and 65K colors
- Panel matrix : 128*96
- Driver IC : SSD1351UR1
- Excellent quick response time.
- Extremely thin thickness for best mechanism design : 1.21mm
- High contrast : 2000:1
- Wide viewing angle : 160
- 8/16/18 bits 6800-series parallel interface, 8/16/18 bits 8080-series
- parallel interface, Serial Peripheral Interface.
- Wide range of operating temperature : -40 to 70 °C
- Anti-glare polarizer.
| Driving Method | Passive Matrix |
| Number of Pixels | 128RGBx96 |
| Active Area(mm) | 26.279x19.708 |
| Panel Size(mm) | 33x25.8x1.21 |
| Pixel pitch(mm) | 0.0685x0.2055 |
| Pixel Size(mm) | 0.0435x0.1855 |
| Duty | 1/96 |
| FPC Pins | 39 pin or 30 pin |
| Color | 262, 144 Colors |
| Porwer Supply Voltage | 2.4~3.5V |
| Frame Rate | 100 Frames/Sec |
| Operating Temperature | -40~70ºC |
| Storage Temperature | -40~85ºC |
| Drive IC | SSD1351UR1 |
| Brightness | 80 (Min) cd/m2 100 (Typ) cd/m2 |
| Driving Voltage | 15V |
| Interface | Parallel / SPI |
| Folding Ability | Folding Type |
| Assembly | Soldering or Connector |
Application
OLED is mainly used in color display, mobile phones, BP machine, video phone, digital camera, light, green light, industrial lighting, signals, transport, finance, business, road signs, indoor and outdoor display of various information , electronic diary, electronic newspapers, office automation (OA) equipment, PDA, watch backlight, home appliances, digital cameras, high-end audio systems, portable information devices such as consumer products, car displays, airborne displays, ship-based displays.
Welcome to wholesale the customized high quality monochrome OLED display module made in China from our factory. We are known as one of the leading China manufacturers and suppliers in OLED industry and we are equipped with a professional factory.
Welcome to contact us.
