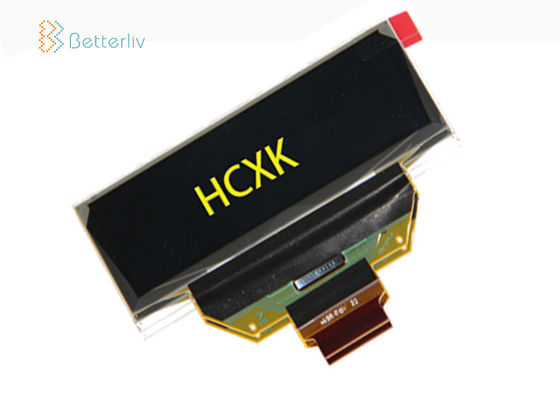

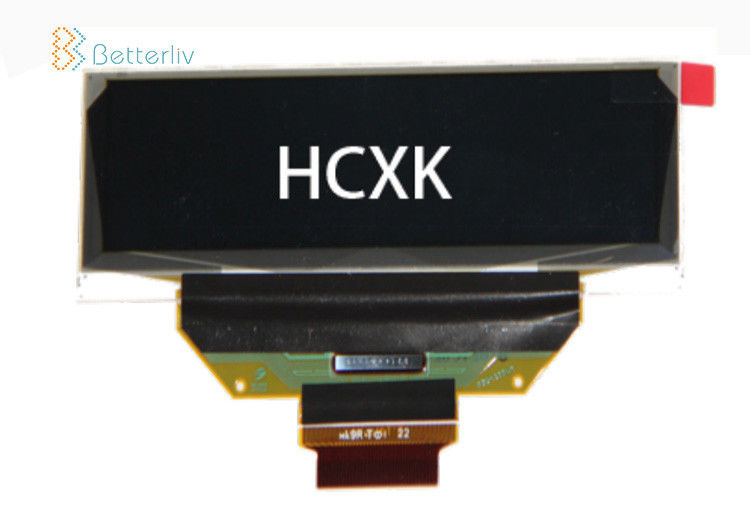

34 pin 3.2 Inch Small OLED Display 256X64 Sunlight Visible
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Size: | 3.2 Inch | Number Of Pixels: | 256x64 |
|---|---|---|---|
| Pins: | 34 Pin | Color: | White Or Yellow |
| Panel Size: | 87.4x28.5x2.01mm | Active Area: | 79.084x19.756mm |
| Interface: | Parallel, 4 Wire SPI | Pixel Size: | 0.289x0.289mm |
| Drive IC: | SSD1322 | Duty: | 1/34 Duty |
| High Light: | 3.2 Inch Small OLED Display,34 pin 256X64 Small OLED Display,Sunlight Visible 34 Pin 3.2 oled display |
||
3.2 Inch 256X64 Visible In Sunlight Customizable Low Power OLED Display
Product Description
HCD5632WW26C01 is a 3.2 inch diagonal PM-OLED display panel product, itself emitting. It features an operating temperature range of -40 ~ 70°C , a storage temperature range of -40 ~ 85°C . It's general features are summarized in the following: Wide Temperature, Matte . Based on its features, we recommend that this model be applied to Handheld & PDA, Wearable etc. Built-in SSD1326 driver IC.
Size: 3.2 inch
Active Area: 79.084*19.756mm
Panel Size: 87.4*28.5mm
Resolution: 256*64
Drive IC: SSD1322
Dot Pitch: 0.309*0.309mm
Dot Size: 0.289*0.289mm
Aperture Rate: 88%
Color: White or Yellow
PIN NO.: 34Pin
Application
Medical machine, Audio/Video, Consumer electronic application like smart phone/intelligent watch, Industry electronic application like Meter, Testing machine.
Welcome to wholesale the customized high quality monochrome OLED display module made in China from our factory. We are known as one of the leading China manufacturers and suppliers in OLED industry and we are equipped with a professional factory.
Welcome to contact us.
