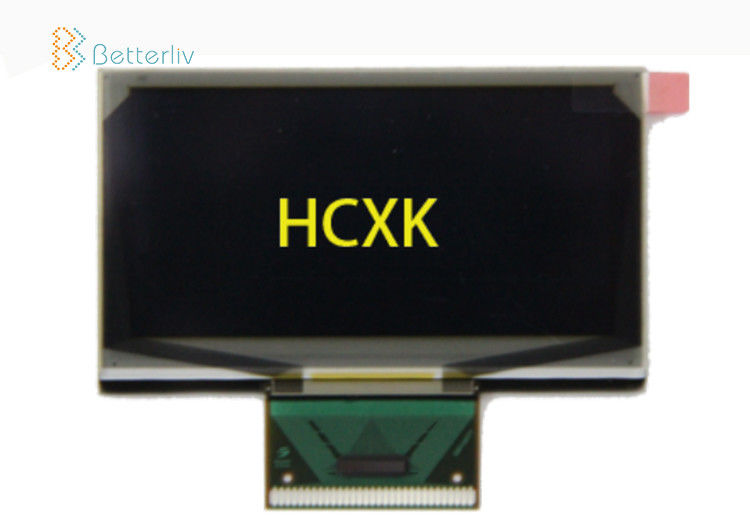

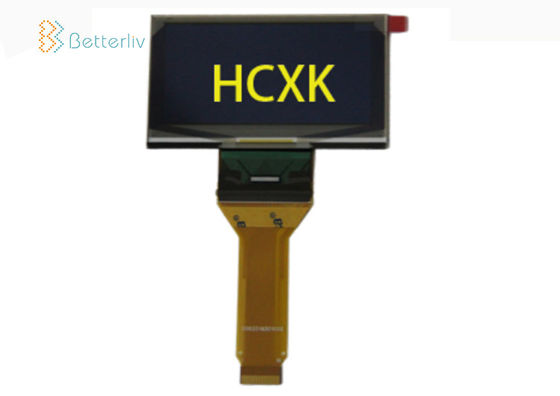

2.7'' 128x64 PM Small OLED Display SSD1305T7 Yellow Screen
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Size: | 2.7 Inch | Number Of Pixels: | 128x64 |
|---|---|---|---|
| Pins: | 31 Pin Or 22 Pin | Color: | Yellow |
| Panel Size: | 70.9X41.86X2.01mm | Active Area: | 61.41X30.69mm |
| Interface: | Parallel, I²C, 4 Wire SPI | Pixel Size: | 0.45X0.45mm |
| Drive IC: | SSD1305T7 | Duty: | 1/64 |
| High Light: | PM Small OLED Display,SSD1305T7 Small OLED Display,SSD1305T7 128x64 oled display |
||
Monochrome 2.7'' 128x64 PM OLED Graphic Display Module SSD1305T7 Yellow Screen
Product Description
This graceful display -- 2.7 inch, white color, good image quality, wide viewing angles, black mental frame, hard frosted surface and the most important, Arduino compatible.
This display provides 128x64 pixels, which is highly suitable for the Arduino controller. Thus by using hardware SPI, the response can be very fast. Meanwhile the powerful "u8glib" library for Arduino makes it easy to use. You will certainly enjoy this incredible and beautiful OLED display!
Specification
128*64 pixel resolution, 2.7 inch OLED display module, easy-using and Powerful library
Power supply voltage: 2.4V to 3.5V
Interface: SPI, Parallel, IIC
Size: 2.7
Lattice: 128 x64
Single color: yellow
Thickness: 2.01
Glass size: 70.9 * 41.86
A/A size: 61.41 * 30.69
Pixel size: 0.48 * 0.48
Application
Medical machine, Audio/Video, Consumer electronic application like smart phone/intelligent watch, Industry electronic application like Meter, Testing machine.
Welcome to wholesale the customized high quality monochrome OLED display module made in China from our factory. We are known as one of the leading China manufacturers and suppliers in OLED industry and we are equipped with a professional factory.
Welcome to contact us.
