2.26'' Small OLED Display , 0.57x067 Character OLED Module
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Size: | 2.26 Inch | Number Of Pixels: | 16 Character X 2H |
|---|---|---|---|
| Pins: | 33 Pin | Color: | White |
| Panel Size: | 67.2x17.5x2.027mm | Active Area: | 56.22x11.52mm |
| Interface: | Parallel, 4 Wire SPI, I²C | Pixel Size: | 0.57x067 |
| Drive IC: | SSD1311 | Module Consruction: | Character Type |
| Highlight: | 2.26'' Small OLED Display,0.57x067 Character OLED Module,0.57x067 2.26'' Character OLED Module |
||

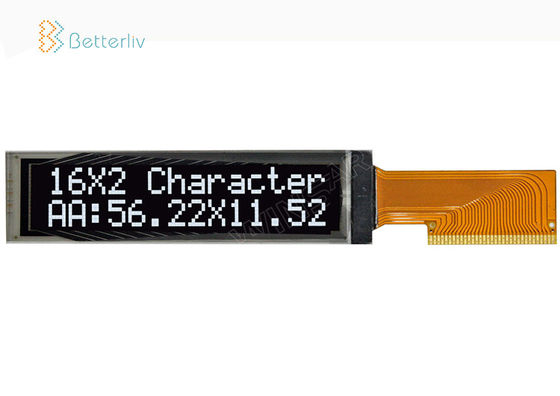

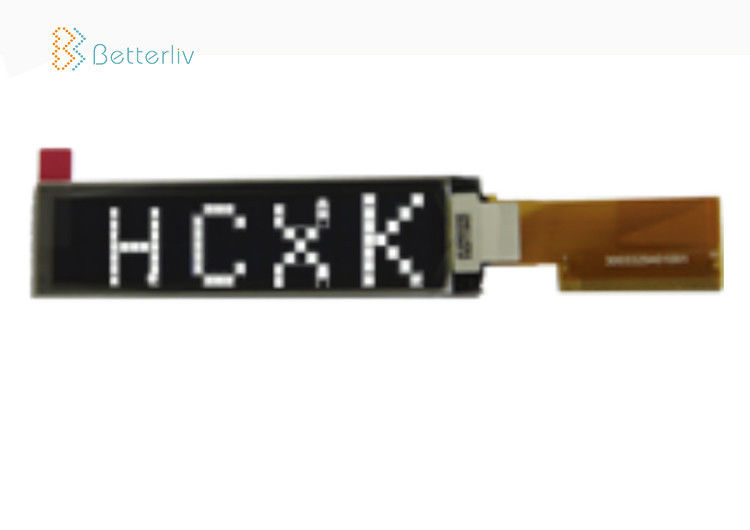

2.26”Character OLED Display PM OLED Module
Product Description
16×2 ( 2×16 ) Character Display with Advanced PMOLED (Organic Light-Emitting Diode) Technology:
Compatible with Character LCD Display
Applicable to Various Character Display Module Development
High Contrast Ratio (10,000:1)
Free Viewing Angle
Fast Response Time (≤ 10μs)
Thinner & Lighter & Durable
Wide Temperature Range (-40°C~85°C)
No need of backlight, self emitting
Apply to most products from any area.
| Diagonal Screen Size | 2.26 inch |
| Color | Mono White |
| Number of Pixels | 16x2 |
| Active area | 35.015x28.012 mm |
| Pixel pitch | 0.073x0.219 mm |
| Pixel size | 0.048x0.199 mm |
| Driver IC | SSD1353 |
| Voltage | 2.4V -3.5 V |
| Interface | 4 Wire SPI, IIC, Parallel |
| Operating temperature | -40~70℃ |
| Storge Temperature | -40~85℃ |
| Assemble | Folding Type |
| Pins | 45 Pin |
Application
OLED screen has a wide range of applications, it is mainly used in color display, mobile phones, BP machine, video phone, digital camera, light, green light, industrial lighting, signals, transport, finance, business, road signs, indoor and outdoor display of various information , electronic diary, electronic newspapers, office automation (OA) equipment, PDA, watch backlight, home appliances, digital cameras, high-end audio systems, portable information devices such as consumer products, car displays, airborne displays, ship-based displays.
Welcome to wholesale the customized high quality monochrome OLED display module made in China from our factory. We are known as one of the leading China manufacturers and suppliers in OLED industry and we are equipped with a professional factory.
Welcome to contact us.
