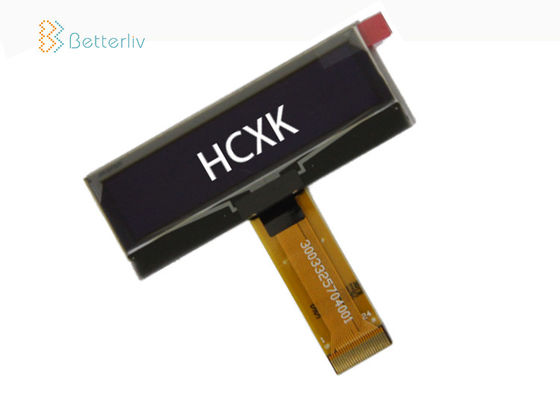

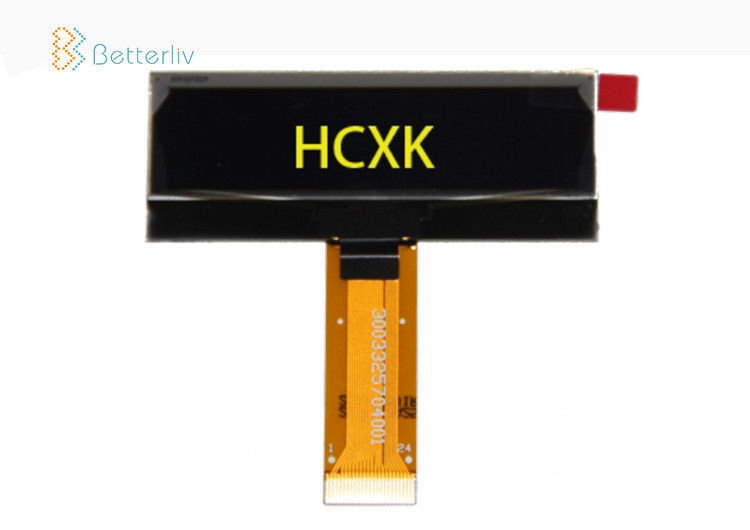

1.54'' Small OLED Display , 24 pin Graphic OLED Module 128x64 Pixels SPD0301
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Size: | 1.54 Inch | Number Of Pixels: | 128x64 |
|---|---|---|---|
| Pins: | 24 Pin | Color: | White, Yellow |
| Panel Size: | 42.04x27.2x1.4mm | Active Area: | 35.052x17.516mm |
| Interface: | Parallel、I²C | Pixel Size: | 0.254x0.254mm |
| Highlight: | 1.54'' Graphic Small OLED Display,24 Pin Graphic OLED Module,SPD0301 Graphic OLED Module |
||
1.54'' Small OLED Display Inch Graphic OLED Display Module 128x64 Pixels SPD0301
Product Description
1.54 inch monochrome graphic oled display module introduction:
Mono OLED screen 1.54inch 128x64 pixels is a mono oled display module, 128x64 pixels mono oled display screen.
The 1.54 inch mono graphic oled display, is a graphic passive matrix oled display, it have 128x64 dots, wide viewing angle, wide temperature, high brightness, high contrast, fast response time.
Mono OLED display module screen-1.54 inch oled screen: because it is OLED display module, full color oled could be emitting light by itself, no need for backlight, so oled display module would be thinner than TFT LCD module. OLED display have no viewing angle limited, it is wide/full viewing angle, and it have excellent display performance in all viewing angle.
1.54’’ 128x64 OLED lcd display module could be displayed in wide temperature, its working temperature could be reached to -40 degree, and 85 degree.
It’s often used for smart watch, MP3, function cellphone, portable health device and many others application.
| Driving Method | Passive Matrix | |
| Number of Pixels | 128×64 | |
| Active Area(mm) | 35.052×17.516 | |
| Panel Size(mm) | 42.04×27.22×1.4 | |
| Pixel pitch(mm) | 0.274×0.274 | |
| Pixel Size(mm) | 0.254×0.254 | |
| Duty | 1/64 | |
| Pins | 24 pin | |
| Color | Monochrome (White or Yellow) | |
| Porwer Supply Voltage | 2.6~3.5V | |
| Frame Rate | 100 Frames/Sec | |
| Operating Temperature | -40~70ºC | |
| Storage Temperature | -40~85ºC | |
| Drive IC | SPD0301 | |
| Brightness | 100 (Min) cd/m2 | |
| Interface | Parallel /I2C | |
| Folding Ability | Folding Type | |
| Assembly | Connector | |
