1.37 Inch 128X128 Transparent OLED Screen SSD1351 SPI
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Size: | 1.37 Inch | Number Of Pixels: | 128 RGBx 128 |
|---|---|---|---|
| Pins: | 34 Pin | Color: | 262, 144 Colors |
| Panel Size: | 31.2X33.8X1.42mm | Active Area: | 24.548X24.556mm |
| Interface: | Parallel, 4 Wire SPI | Pixel Size: | 0.036X0.172 |
| Drive IC: | SSD1351 | Module Consruction: | COF |
| High Light: | 128X128 1.37 Inch Oled Screen,1.37 Inch Transparent Oled Screen,1.37 Inch transparent oled display |
||
Color Type 1.37 Inch 128X128 Transparent OLED Screen SSD1351 SPI Full Color Smart Digital Display OLED
Application
This full color PM OLED is mainly used in Smart Home, Payment Terminals, Telecommunication Devices, Security System Equipments, Automobile Electronics, Medical Equipments, Household Electrical appliances, Kinds of Instruments or Meters......
Product Description

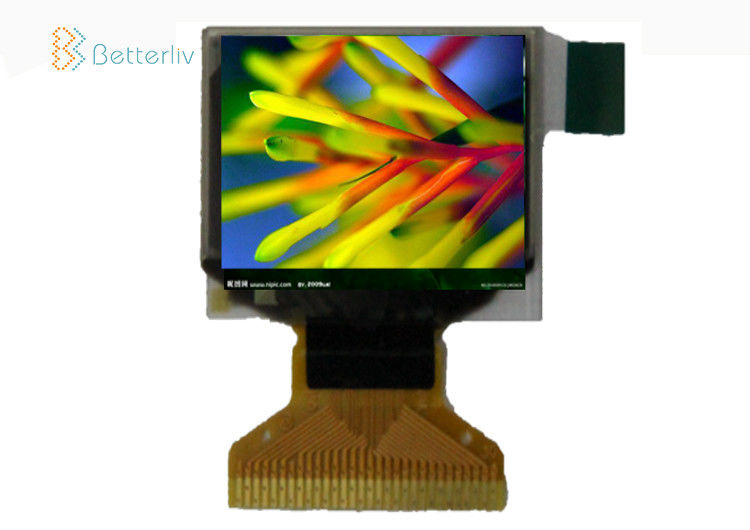

1.37" inch 128 RGB x128 resolution OLED display module with Parallel or 4 wire SPI interface, this module is based on the SSD1351 driver and can be used in equipments which are full color . The OLED display is a display made using organic electroluminescent diodes.
| Number of Pixels: | 128RGB×128 |
| Outline Dimension: | 31.2×33.8×1.42mm |
| LCD Active Area(mm): | 24.548×25.556mm |
| Duty: | 1/128 |
| Color: | 262,144 Colors |
| Driving IC: | SSD1351 |
| Porwer Supply Voltage: | 2.4~3.5V |
| Driving Voltage: | 16V |
| Frame Rate: | 100 Frames/Sec |
| Interface: | Parallel / SPI |
| Pixel Pitch (mm): | 0.064×0.192 |
| Pixel Size(mm): | 0.036×0.172 |
| FPC type: | Soldering |
| Operating Temperature: | -40 to +70ºC |
| Storage Temperature: | -40 to +85ºC |
| Brightness: | 90 cd/m2 |
Welcome to wholesale the customized high quality monochrome OLED display module made in China from our factory. We are known as one of the leading China manufacturers and suppliers in OLED industry and we are equipped with a professional factory.
Welcome to contact us.
