12 Pin 0.96 OLED Screen , 96x96 Square OLED Display SSD1327 4-Wire SPI
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Size: | 0.96'' | Pins: | 12pin |
|---|---|---|---|
| Color: | White | Number Of Pixels: | 96x96 |
| Driving Method: | Passive Matrix | Panel Size: | 24x25.7x1.2mm |
| Active Area: | 17.26x17.26mm | Duty: | 1/96 |
| Interface: | 4-Wire SPI | Pixel Size: | 0.16x0.16mm |
| High Light: | 12 Pin 96x96 Square OLED Display,SSD1327 0.96 OLED Screen,12 Pin Square OLED Display |
||
0.96'' Small OLED Display 12 Pin 96x96 Square Mononchrome White OLED Screen SSD1327 4-Wire SPI
Product Description

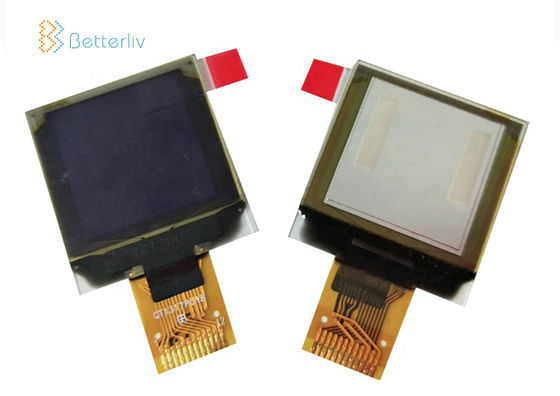

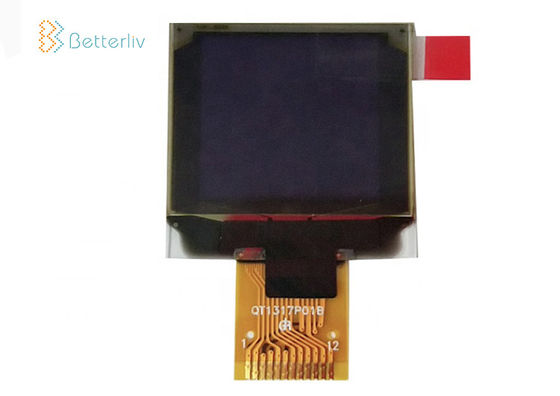

It is the square OLED display panel made of 96x96 individual white OLED pixels,diagonal is only 0.96 inch.The controller ic SSD1327 communicates via 4-wire SPI serial interface. Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast,extremely wide viewing angle and extremely operating temperature.The FPC is the soldering type,no need connector.Just solder the FPC on your PCB directly.
It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi.It can be used in any embedded systems,industrial device,security,medical and hand-held device.
1. Drive mode: Passive Matrix
2. Pixel: 96x96
3. Display area: 17.26×17.26
4. Glass size: 24×25.7×1.2
5. Pins: 12 pin
6. Color: white
7. Supply voltage: 2.6~3.5V
8. Frame: 100 Frames/Sec
9. Working temperature: -40~85℃
10. Storage temperature: -40~85℃
11. Driver IC: SSD1327
12. Driving voltage: 12V
14. Hardware interface: 4-wire SPI
15. Module structure: COG
OLED Benefits
High Contrast Ratio (10,000:1)
Free Viewing Angle
Fast Response Time (≤15μs)
Thinner & Lighter & Durable
Wide Operation Temperature (-40℃ - +85℃)
Self-emitting, No Need of Backlight
Applicable to Most Products from Any Segment
Free Viewing Angle
Fast Response Time (≤15μs)
Thinner & Lighter & Durable
Wide Operation Temperature (-40℃ - +85℃)
Self-emitting, No Need of Backlight
Applicable to Most Products from Any Segment
