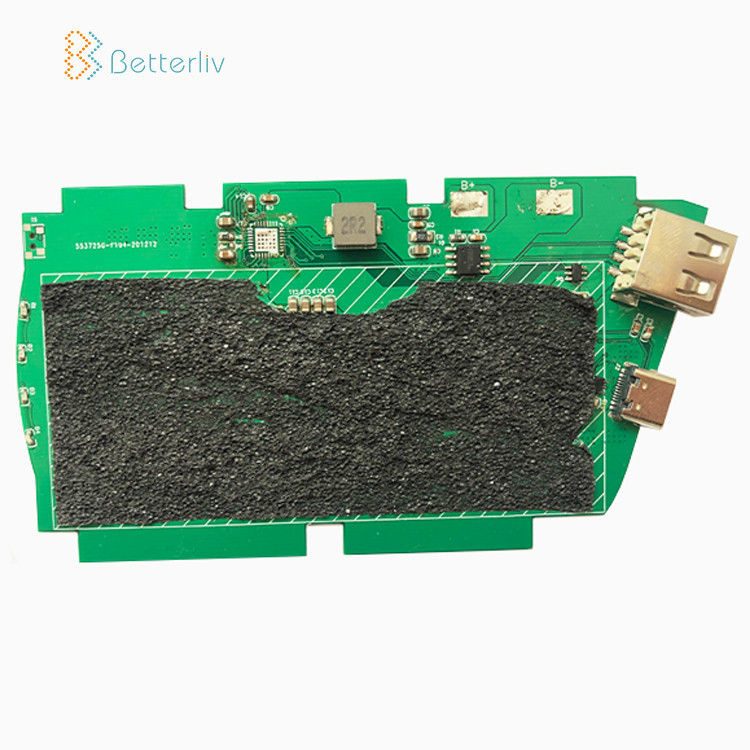

10w Power Wireless Charger Pcba QC3.0 Fast Charging Power Bank Circuit Board

10w Power Wireless Charger Pcba QC3.0 Fast Charging Power Bank Circuit Board

10w Power Wireless Charger Pcba QC3.0 Fast Charging Power Bank Circuit Board
10w Power Wireless Charger Pcba QC3.0 Fast Charging Power Bank Circuit Board

Large Image :  10w Power Wireless Charger Pcba QC3.0 Fast Charging Power Bank Circuit Board Get Best Price

Product Details:
Place of Origin: Shenzhen,China
Brand Name: Betterliv/OEM
Certification: CE FCC ROHS
Model Number: OEM
Payment & Shipping Terms:
Payment Terms: T/T, Western Union, Credit Card
Detailed Product Description
Type: Consumer Wireless Charger Power Bank Pcba Support Customization: QC PD Charging Pcba Could Be Customerized
Copper Thickness: 1/2 Oz-4 Oz Testing Service: 100% E-testing
Base Material:: FR-4 Board Thicknes: 0.2-4.0mm
Min. Line Width: 1mil Surface Finishing: Hassel
High Light:

Power wireless charger pcba

,

10w wireless charger pcba

,

QC3.0 Fast Charging Power Bank Circuit Board

10w Power PCBA Mobile Charger Wireless PCBA QC3.0 Fast Charging Power Bank PCB



Production description

Copper Thickness
Max 6oz
Board Thickness
0.1mm-7.0mm
Min. Hole Size
0.1mm
Min. Line Width
0.075mm (3mil)
Min. Line Spacing
0.075mm (3mil)
Surface Finishing
HASL,OSP,ENIG, Gold fingers,etc
Board material
FR-4 Tg130-Tg180/ FR-4 CTI175 / FR-4 CTI300/CEM-1/CEM-3
Tolerance
V-cut dept tolerance: +/-0.1mm
Wrap and twist
5%
Minimun thickness of soldermask
10um
Soldermask
Green/ White/ Black/ Blue/ Yellow etc.
Certificate
ISO9001/UL
Testing Service
AOI X-Ray Function Test





PCB/PCBA services

Betterliv is a one stop PCB & PCBA supplier. It offers turn key solutions for PCB and PCBA projects from design, clone, PCB manufacture, components sourcing, to PCB assembly.



1. Test: ICT and functional with full tech and engineering support staff

2. FR-4, FR-4 High TG, CEM-1, CEM-3, Aluminum base material.

3. Single-sided PCB, double-sided PCB, multi-layer PCB, competitive price, good quality and good service.

4. Prototype qualifications through production volumes
5. HAL, HAL lead free, Immersion Gold/ Silver/Tin, OSP surface treatment.
6. Printed Circuit Boards are 94V0 compliant, and adhere to IPC610 Class 2 international PCB standard.
7. Quantities range from prototype to medium and batch production.



Application

10w Power Wireless Charger Pcba QC3.0 Fast Charging Power Bank Circuit Board 0

Our advantages

1.  High-end, Small volume and Various kinds of PCBA service offered.
2. Speedy, Flexible and one-stop service in PCBA.
3. Assembly and Purchasing service offere or their pointed agents.
4. Transparent quotation,cost and benefit are detailedly opened to customer.
5. With professional Engineers and Long-term successful experience in cooperating with customers inland and overseas, all new projects can be developed faster and better than expected.
6. With USA or Japan imported tin cream and tin bar, and 100% AOI testing during production, all PCBAs we made are more reliable.



Products Capability

Items PCB capacity
Product name SMT circuit board manufacturer custom electronic assembly pcb pcba
Material FR-4; High TG FR-4; Aluminum; CEM-1; CEM-3; Rogers, etc
PCB type Rigid, flexible, rigid-flexible
Layer NO. 1, 2, 4, 6, up to 24 layer
Shape Rectangular, round, slots, cutouts, complex, irregular
Max PCB dimensions 1200mm*600mm
Board Thickness 0.2mm-4mm
Thickness Tolerance ±10%
Min Hole Size 0.1mm (4 mil)
Copper Thickness 0.5 OZ-3OZ (18 um-385 um)
Copper Plating hole 18um-30um
Min Trace Width 0.075mm (3mil)
Min Space Width 0.1mm (4 mil)
Surface finish HASL, LF HASL, Imm Gold, Imm Silver, OSP etc
Solder mask Green, red, white, yellow, blue, black, orange, purple



Items PCBA capacity
Product name SMT circuit board manufacturer custom electronic assembly pcb pcba
Assembly details SMT and Thru-hole, ISO SMT and DIP lines
Testing on products Testing jig/mold , X-ray Inspection, AOI Test, Functional test
Quantity Min quantity : 1pcs. Prototype, small order, mass order, all OK
Files needed PCB : Gerber files(CAM, PCB, PCBDOC)
Components : Bill of Materials(BOM list)
Assembly : Pick-N-Place file
PCB Panel Size Min size : 0.25*0.25 inches(6*6mm)
Max size : 1200*600mm
Components details Passive Down to 0201 size
BGA and VFBGA
Leadless Chip Carriers/CSP
Double-sided SMT Assembly
Fine BGA Pitch to 0.2mm(8mil)
BGA Repair and Reball
Part Removal and Replacement
Component package Cut Tape, Tube, Reels, Loose Parts
PCB+ assembly process Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity
