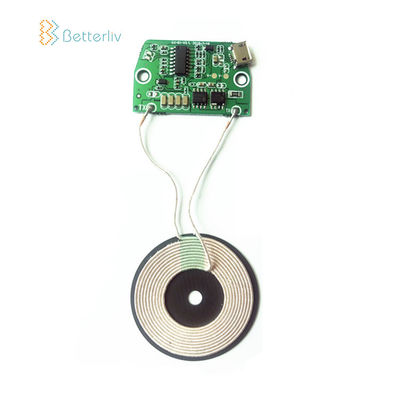

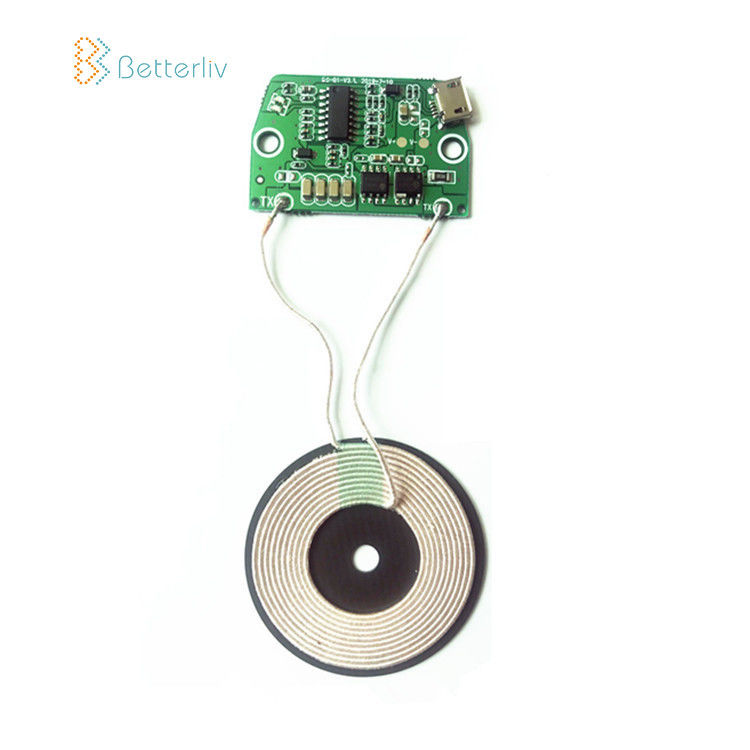

10 Watt Qi Wireless Charger Board 83 Transfer Efficiency Mobile Charger Pcb Board
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Base Material: | FR4/ROGERS/Aluminum/High TG | Board Thickness: | 0.2-7.0mm |
|---|---|---|---|
| Copper Thickness: | 0.5-6OZ | Surface Finishing: | HASL\HASL Lead Free\ENIG\GOLD Finger |
| Silkscreen Color: | Black.White.Yellow | Input Power: | 5V 2A Or 12V 1.5-2A |
| Output: | 5V 1A Or 9V 1.12A-1.67A | Min Hole Size: | 0.15mm |
| Product Standards: | Qi Standard | Solder Mask Color: | Green.Black.Red.Yellow.White.Blue.Purple.Matte Green. |
| High Light: | 83 Transfer Qi Wireless Charger Board,83 Transfer Efficiency Wireless Charger Board,10 Watt 83 Qi Wireless Charger Board |
||
10 Watt Wireless Charger Cell Phone Car Holder Wireless Charging PCBA
Function parameters specification
1. Input voltage: 5V 9V 12V, it will alarm and stop charging when beyond this range.
4. Power: 10W 7.5W 5W
5. Transfer Efficiency: above 83%
6. Transmission distance: Max 10mm,recommend spacing 2mm~4mm.
7. Standby power consumption: average power consumption below 50mW
8. Over temperature protection: when temperature higher than 60℃ it will stop charging for one minute,and will recharge after temperature falling.
9. Over current protection: It will automatically stop charging when output current is greater than 1.5 A
10.Standard: QI wireless charging standard
11.Certification: compatible with QI standard.
12.Whether support foreign detection: YES
13.Indicator light function: Green light when charging, red light when stand by, both light flash when malfunction.
Main Service
|
PCBA Processing Capacity
|
||||
|
Processing Service
|
One Stop PCB Assembly service, include components&plastic mold sourcing,SMT&DIP assembly and enclosure installation service.
|
|||
|
Components Package
|
Smallest with 01005, various chips package as QFN,BGA,SSOP,PLCC,LGA..
|
|||
|
Testing
|
100% Function Testing before shipment
|
|||
|
MOQ
|
No MOQ(1PCS)
|
|||
|
Factory Certificate
|
ISO9001:2017；ISO13485；ISO16949
|
|||
FAQ
Q1.Do you have your own research and development of the wireless charge program?
A: yes,We are the PCBA oem factory, we have a professional R&D and design engineer team that can meet your various customization needs.
Q2.What's the working temperature of this module?
A:Based on the room temperature,Standard charging: +6eC~+8^. fast charging: +8°C~+12°C.
Q3.Do you test all your goods before delivery?
A: Yes, we have 100% QC before delivery
Q4.May I OEM or ODM the wireless charging module
A: Yes, send us your requirements such as the PCB size and function, we will evaluate and give you some suggestions.
Q5. What is your terms of delivery?
A: EXW, FOB, CFR, CIF
Q6.Whether the size of the coil can be modified ?
A: There are conventional coils 43mm, 45mm, 48mm, 50 mm .If need customized,we will die sinking. But there is a MOQ requirement.
